Roll-Paper Automatic Waterbased Cold Laminating Machine

China Roll-Paper Automatic Waterbased Cold Laminating Machine factory specializing in high-volume production with strict ISO quality control. Roll-Paper Cold Laminating Machine is an automated laminating device specifically designed for roll materials. The Roll-Paper Cold Laminating Machine utilizes water-based adhesive to complete the laminating process at room temperature, combining high efficiency, environmental friendliness, and precision. Roll-Paper Automatic Waterbased Cold Laminating Machine is suitable for large-scale production in industries such as printing, packaging, and advertising.

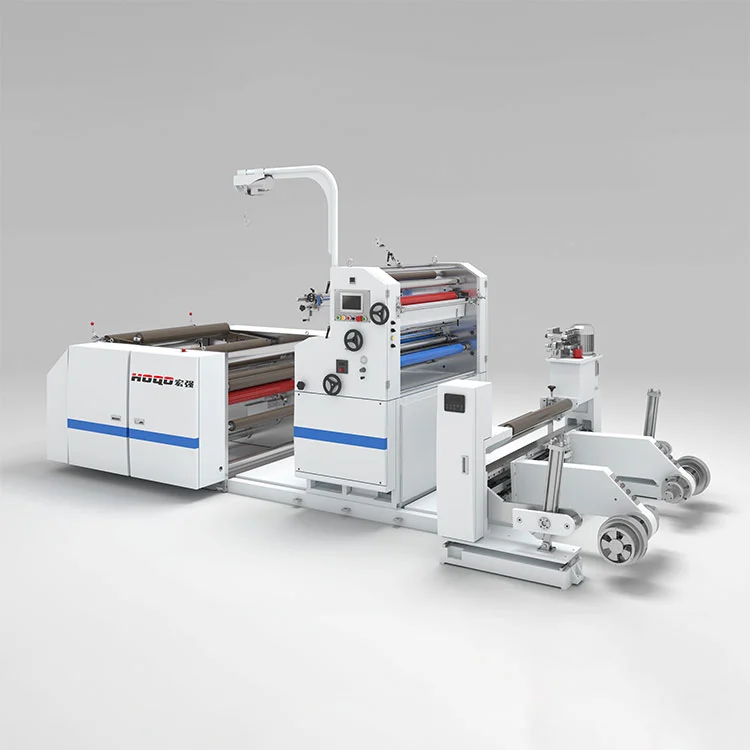

For high‑volume roll‑fed laminating where an environmentally friendly process is preferred, the Roll‑Paper Automatic Waterbased Cold Laminating Machine (model ZDFM‑JF) from Hongqiang applies water‑based adhesives at room temperature, so no heating is required. Designed for continuous roll‑to‑roll or roll‑to‑sheet production, it suits large runs in printing, packaging, and advertising. A single servo system supports full‑page lamination at speeds of 20–100 m/min, and the machine is built under ISO quality guidelines. This configuration offers a practical balance of throughput and cost‑effectiveness for orders that call for water‑based adhesives, while the cold process helps maintain substrate integrity and simplifies operation.

Parameters

Model Name ZDFM-1100JF
Max.Roll Width 1050mm
Max Roll Diameter 1200mm
Laminating Speed 20-100m/min (servo-controlled)
Paper Thickness 80-400g/㎡
Production Power 11KW
Total Power 18KW
Air supply 1000L/min 0.8Mpa
Power supply 380V 50Hz / 3P4W

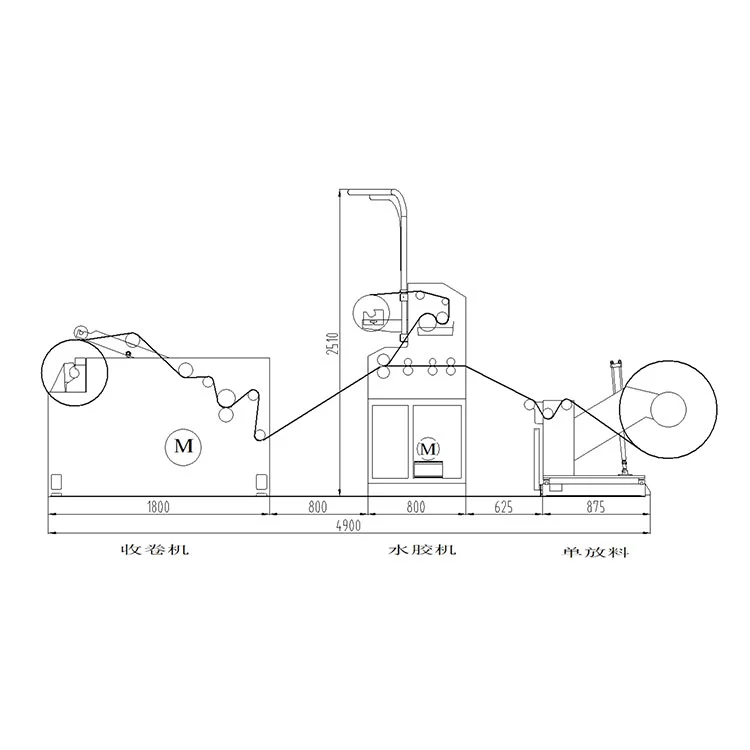

Overall Dimensions(L*W*H) 5400*2550*2600mm
Weight ≈5000kg
Overlap Precision ≤+1.5mm
Water Base Film Thickness(common) 0.8/1.0/1.2/1.5
Common Glue Thickness 4-10g/m²

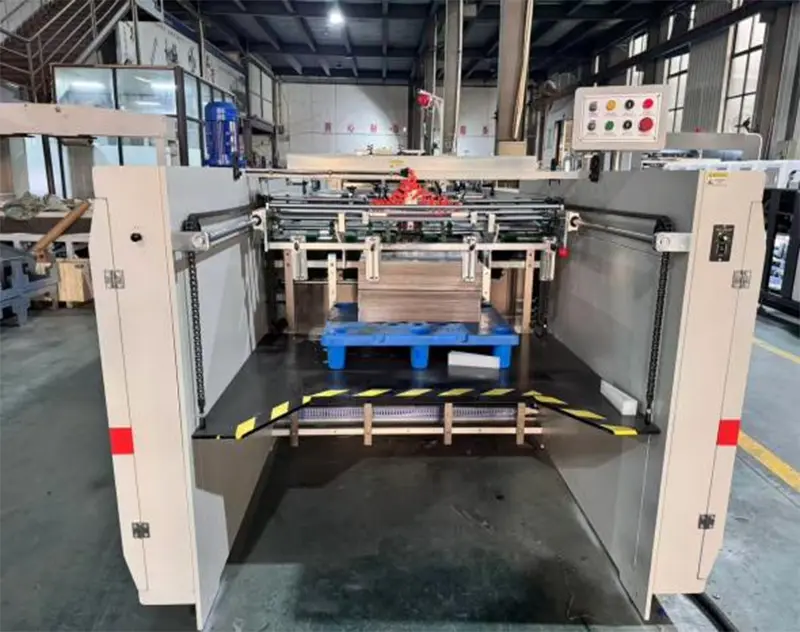

Non-Stop Feeding Height 1100mm
Collector Paper Height (incl. pallet) 1000mm
Container 40HQ
HS code 8439300000
Material Compatibility OPP, BOPP films; paper substrates; rigid packaging materials

Function and Features:

1. National Standard Compliance

Full-range mechanical design with safety protocols & components certified by China's High-Tech Industrial Standards.

2. Unshakable Stability

Cast iron mainframe ensures vibration-free, ultra-stable operation even under heavy-duty cycles, more than 20 years lifespan.

3. Precision Paper feeding

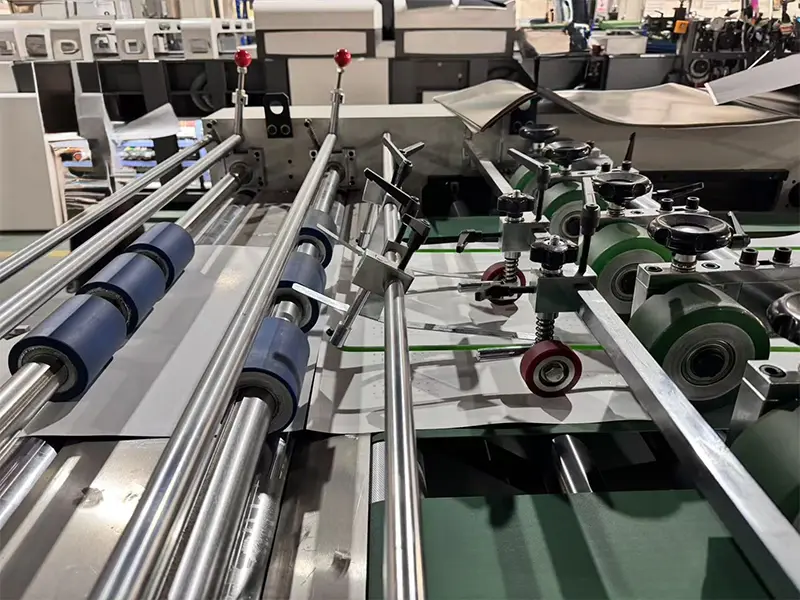

Servo-controlled feeder system guarantees smooth, jam-free paper transport with automatic adjustment.

4. Smart Alignment Technology

Servo-driven paper alignment mechanism achieves ±1.5mm positioning accuracy for flawless edge matching.

5. Core components from world leaders

Electrical systems:  Schneider Electric (FR), Omron (JP).
