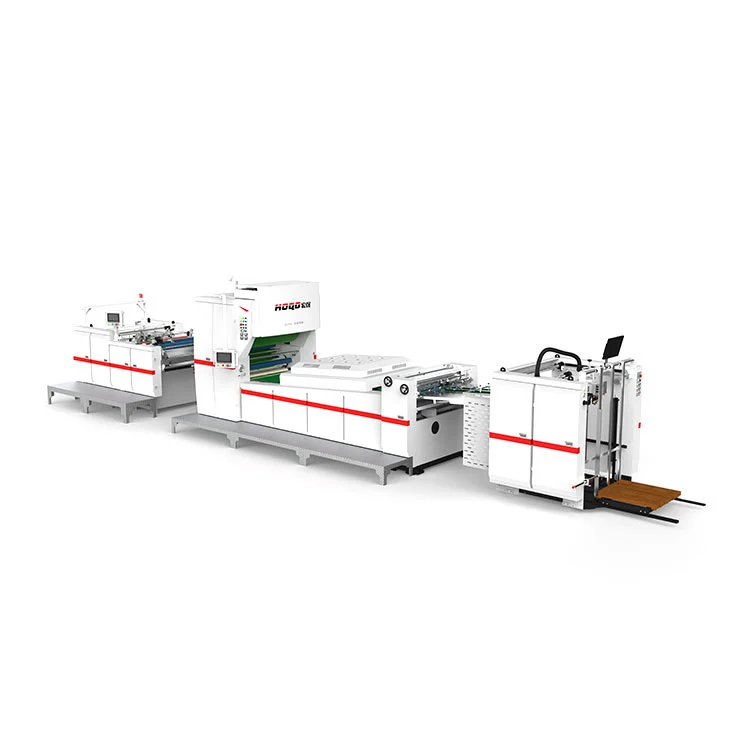

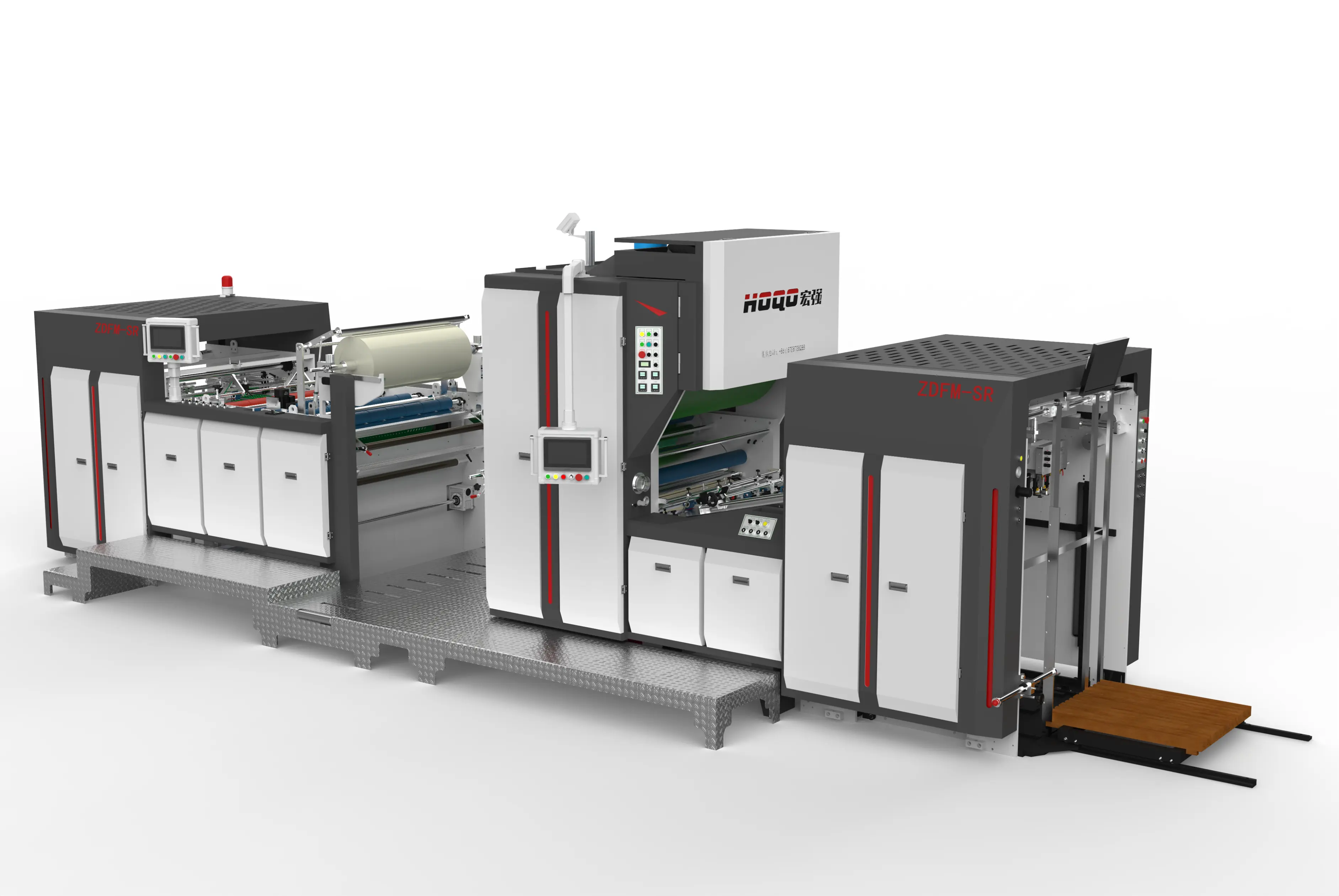

Intelligent Servo Film Remover Laminating Machine

Product Parameter (Specification)

Function and Features:

1. National Standard Compliance

Stringent mechanical design with safety protocols and components certified to China's High-Tech Industrial Standards.

2. Unshakable Stability

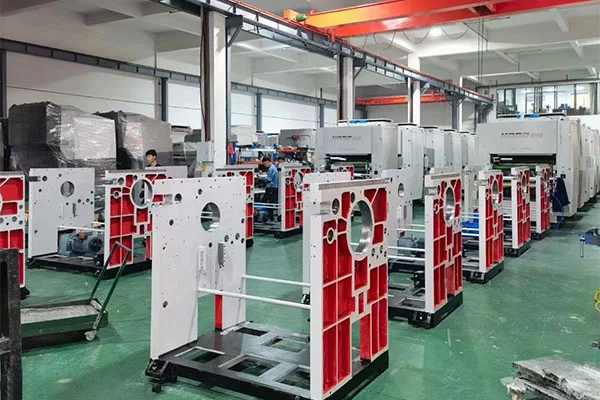

Reinforced cast iron mainframe offers inherent stability and low-vibration performance under heavy-duty cycles, engineered for over 20 years of service.

3. Precision Paper Feeding

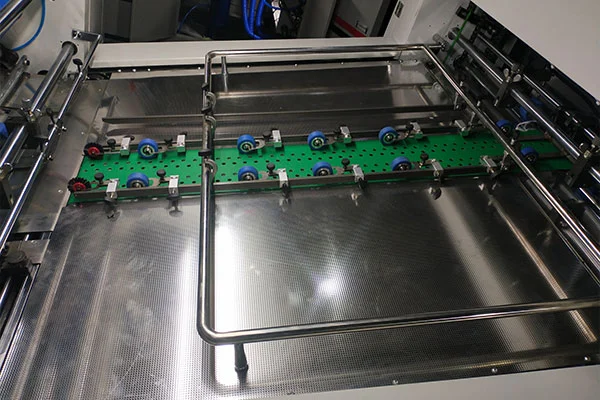

Servo-driven feeder system promotes smooth paper handling with effective anti-jam logic and automatic correction.

4. Smart Alignment Technology

Servo-aligned registration secures ±1.5 mm accuracy for precise edge pairing.

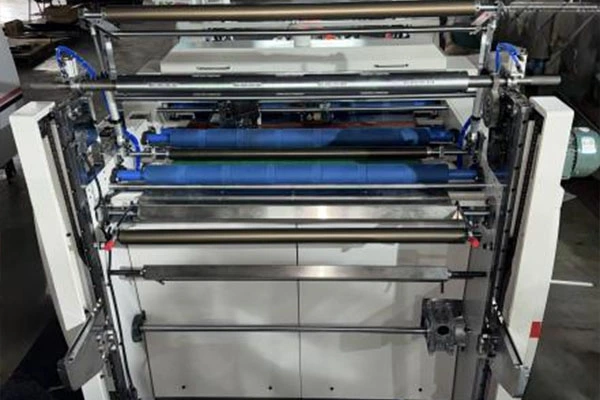

5. Advanced Heating System (3-Zone Segmented Electromagnetic Roller)

• Accelerated Warm-Up: reaches 100°C in about 5 minutes – substantially faster than conventional rollers.

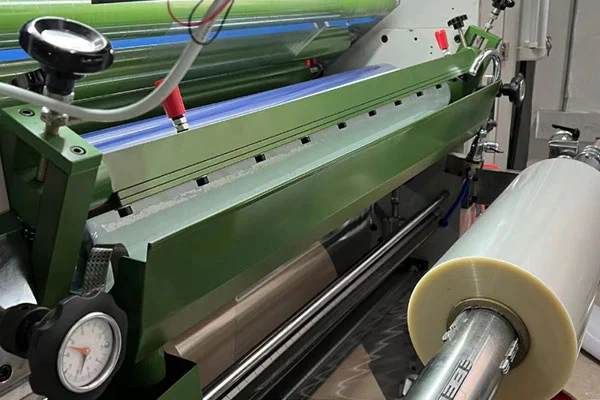

• Temperature Stability: maintains uniform adhesive laydown to enhance surface finishing even at higher speeds.
• Energy Efficiency: zone 2 activates exclusively for widths ≤720 mm, trimming energy usage by approximately 33%.
• Durability Advantage: localized heating reduces rubber roller wear, helping to lower long-term maintenance costs.

6. Intelligent Operation Modes

ZDFM-A: Full-cycle automation covering feeding, gluing, laminating, pressure pumping & relieving, cutting, and stacking.

ZDFM-S: Intelligent positioning assistance – input sheet dimensions via HMI, and the 14 servo units auto-position within about 1 minute.

7. Zero-Downtime Productivity

Continuous plate-changing design minimizes production interruptions and can drive notable increases in overall output.

8. Real-Time Process Control

Built-in rear-view monitoring with IoT connectivity enables remote operational oversight at all hours.

9. Core components from world leaders

Electrical systems: Schneider Electric (FR), Omron (JP).

Film Remover Device(Optional)

About Film Remover Device, automatic film recycling after lamination, Leaves clean glue layer on product.(Note: Requires special deplasticizing film)
