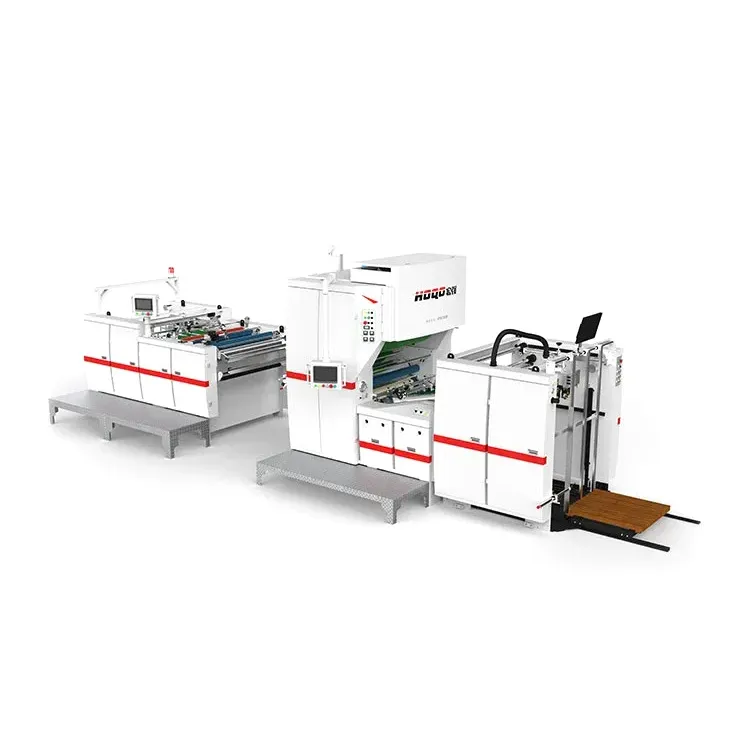

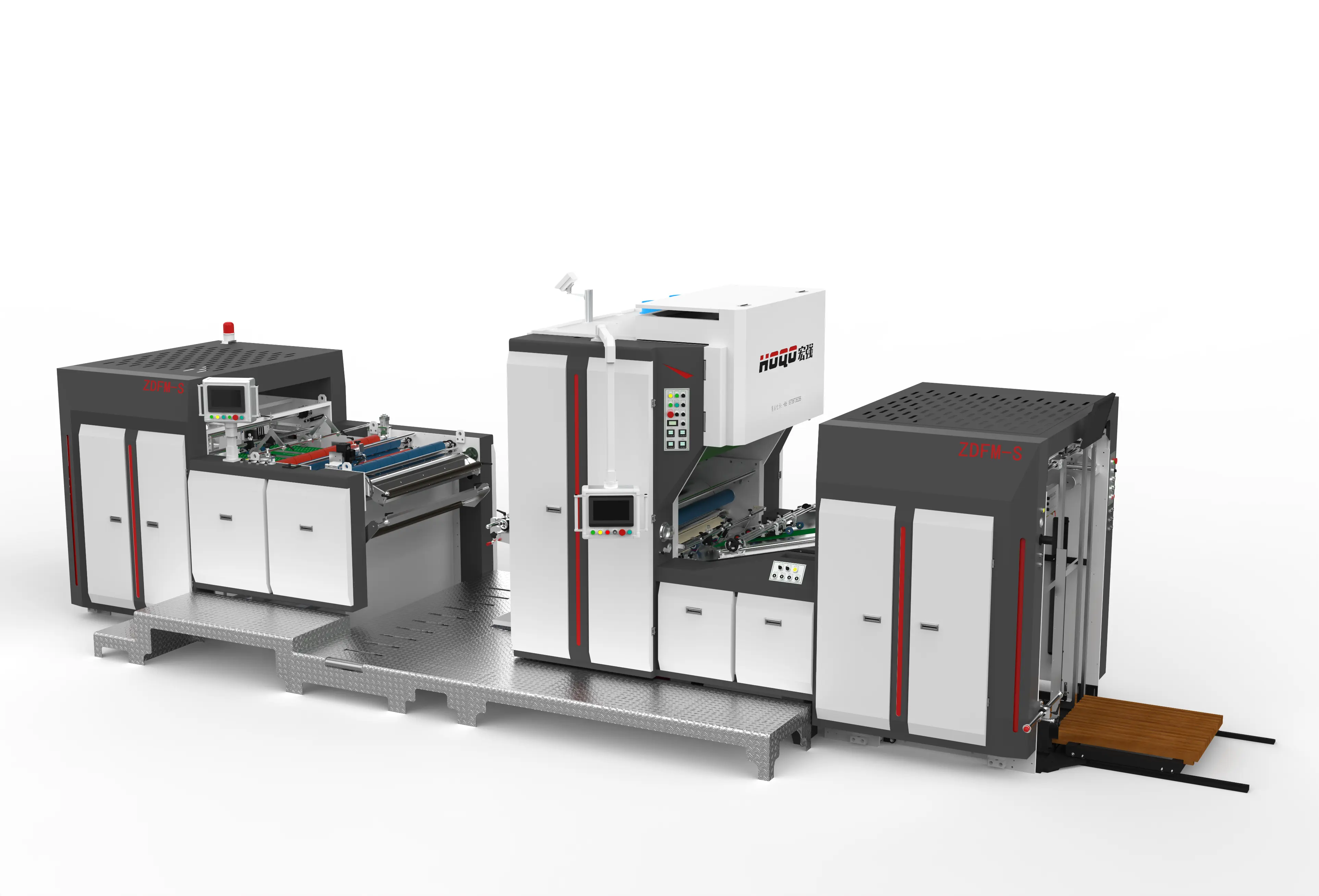

Intelligent Servo Disc Knife Laminating Machine

The Intelligent Servo Disc Knife Laminating Machine, model ZDFM‑S, from Hongqiang is designed to laminate OPP, BOPP, and other plastic films onto paper surfaces. In typical laminating equipment, switching between specifications often involves manual adjustments of several parts, which can be time‑consuming. With this model, operators simply input the new size on the HMI, and the 13 servo drives automatically adjust, enabling quicker changeovers. The servo system contributes to accurate and consistent operation, which may be beneficial for orders that require frequent size changes. Hongqiang offers this machine at competitive pricing and serves customers in European and Asian markets. We would welcome the opportunity to discuss how we might support your production needs.

Product Parameter (Specification)

Function and Features:

1. National Standard Compliance

Comprehensive mechanical design with safety protocols and components certified to China's High-Tech Industrial Standards.

2. Unshakable Stability

Cast iron mainframe provides stable, low-vibration operation even under heavy-duty cycles, with a designed lifespan of more than 20 years.

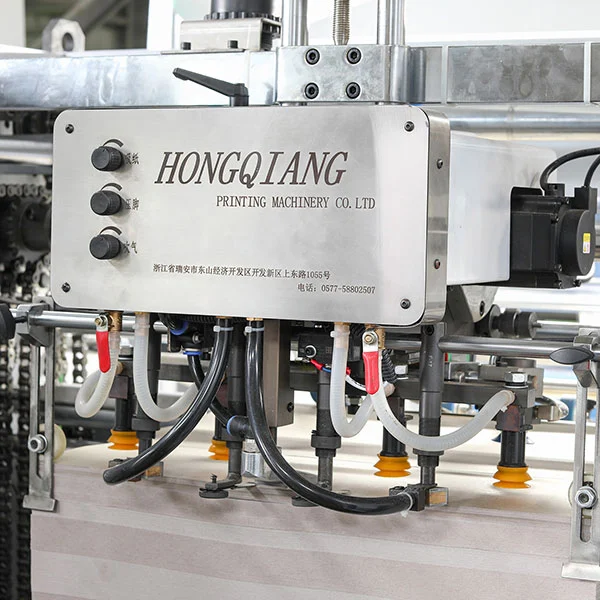

3. Precision Paper Feeding

Servo-controlled feeder system supports smooth paper transport with automatic jam prevention and adjustment.

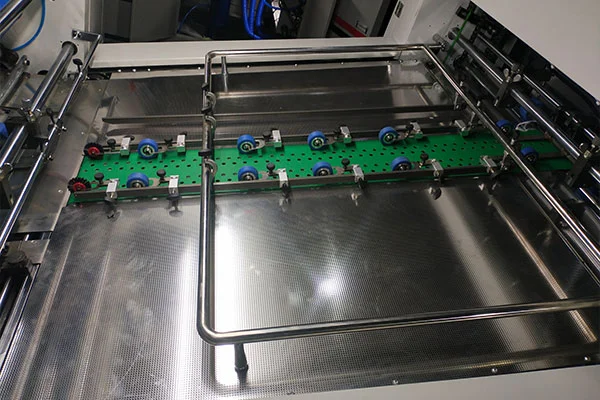

4. Smart Alignment Technology

Servo-driven alignment achieves positioning within ±1.5 mm for consistent edge matching.

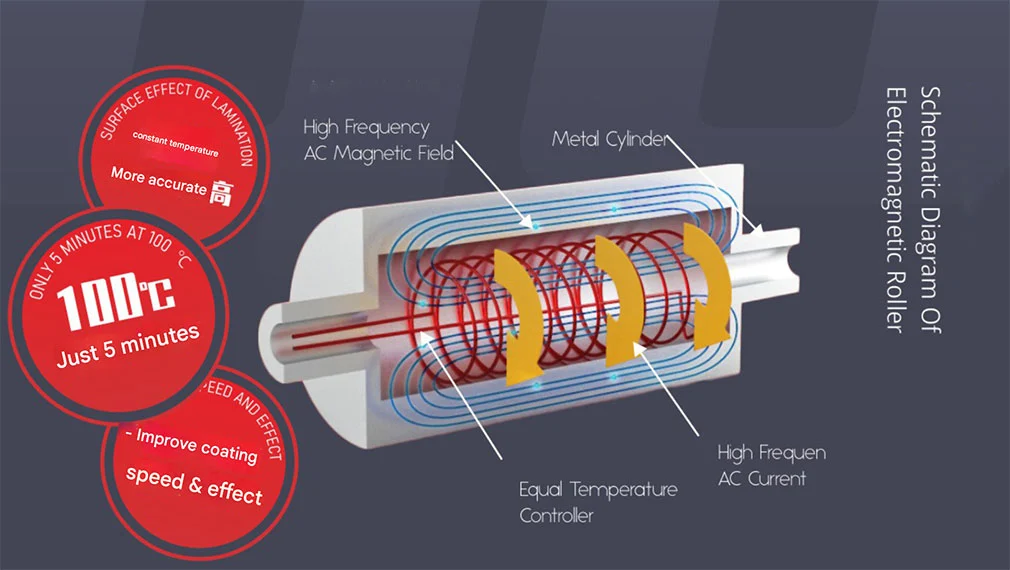

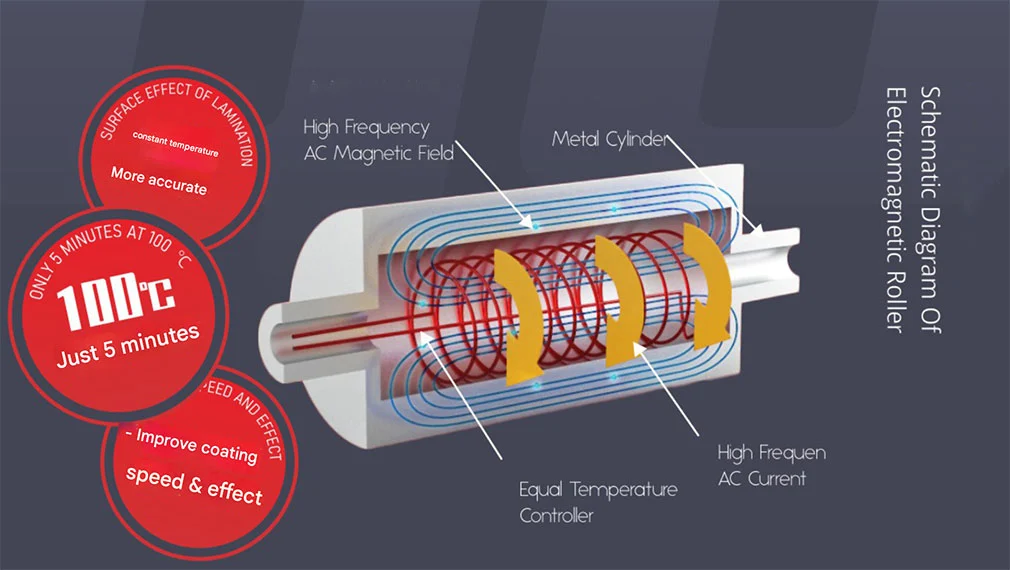

5. Breakthrough Heating System (3-Zone Segmented Electromagnetic Heating Roller)

• Fast Warm-Up: reaches 100°C in about 5 minutes – noticeably faster than conventional rollers.
• Stable Temperature Control: maintains glue uniformity to improve surface effect even at high speeds.
• Energy Conservation: activates the second zone for small formats ≤720 mm, reducing energy use by about 33%.
• Extended Lifespan: targeted heating helps reduce rubber roller wear and related maintenance costs.

6. Intelligent Operation Modes

ZDFM-A: One-touch automation covering feeding, gluing, laminating, pressure pumping & relieving, cutting, and stacking.

ZDFM-S: Assisted calibration – by inputting sheet sizes via the HMI, the 14 servo units auto-adjust within about 1 minute.

7. Zero-Downtime Productivity

Continuous plate-changing system minimizes downtime and can significantly raise output.

8. Real-Time Process Control

Built-in rear-view monitoring with IoT connectivity for around-the-clock remote operational diagnostics.

9. Core components from world leaders

Electrical systems: Schneider Electric (FR), Omron (JP).

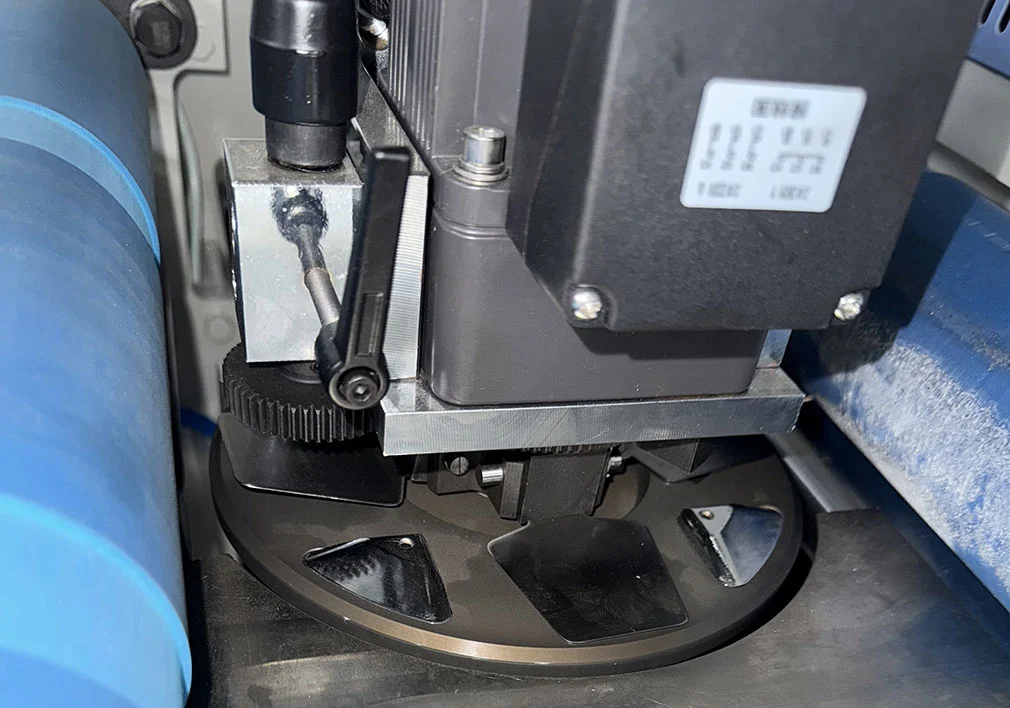

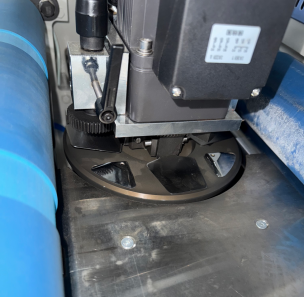

Disc Knife Device(Standard)

1.The disc knife is equipped with 4 blades, which can cut the film at the product joint  position by rotating the disc knife device.

2.Horizontal cutting can better cut the film without damaging the paper surface,  controlled by a separate frequency converter, and the speed can be freely selected  to cope with different situations.

Grinding Wheel Cutter Device(Standard)

1.The grinding wheel cutter‌ efficiently grinds the surface of the film in the lap without damaging the printed layer. It cooperates with bounce rollers‌, enabling rapid separation of the material. ‌Particularly suited for processing pressure-sensitive adhesive (PSA) .

2.The bounce rollers adopts a self-developed paper pulling mechanism, which uses the speed difference to quickly break the film and separate the paper. It achieves product no tail film and no roll film.
