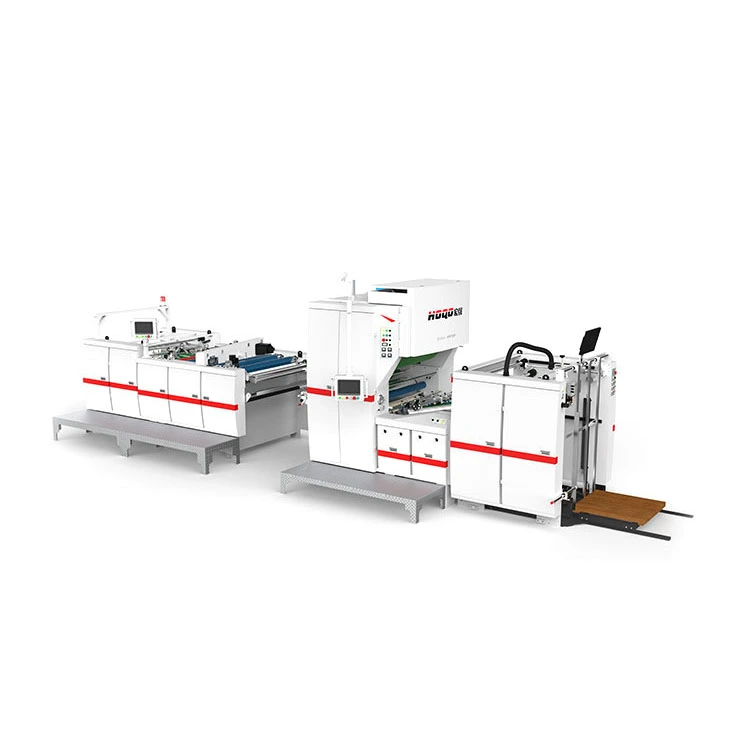

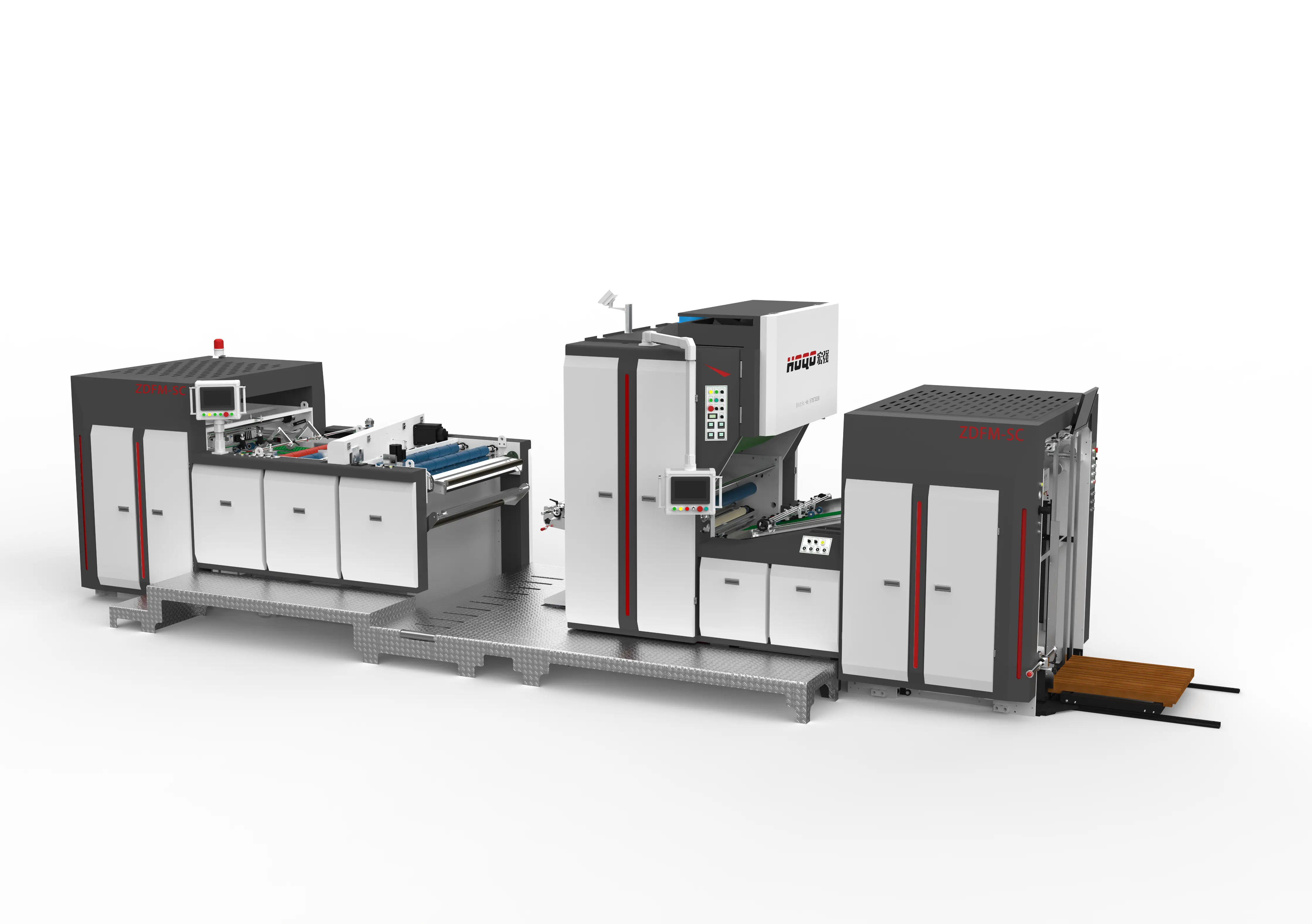

Intelligent Servo Chain Knife Laminating Machine

Traditional laminating machines often require manual adjustments for each size change, which can be relatively time‑consuming. The Intelligent Servo Chain Knife Laminating Machine from Hongqiang is equipped with 14 servo motors. Operators simply enter the new paper size on the touchscreen, and all units adjust automatically—typically completing the changeover in about one minute. This feature supports a changeover process that may be described as "one‑touch" in operation. This can be particularly useful for handling orders with small batches and multiple specifications, as it helps reduce downtime associated with frequent specification changes.

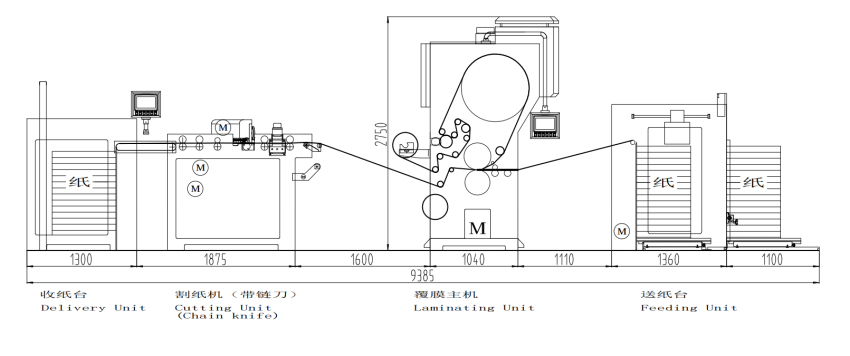

Product Parameter (Specification)

Function and Features:

1. National Standard Compliance

Full-scale mechanical design with safety protocols and components certified to China's High-Tech Industrial Standards.

2. Unshakable Stability

Cast iron mainframe delivers stable, vibration-damped operation even under heavy-duty cycles, with a lifespan designed for over 20 years.

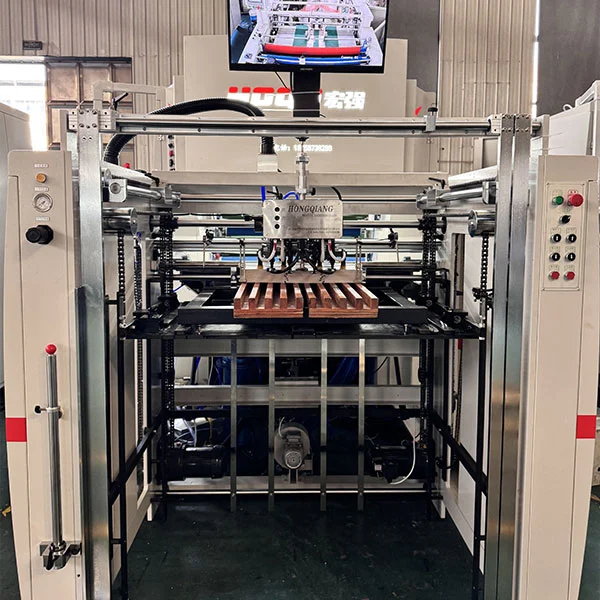

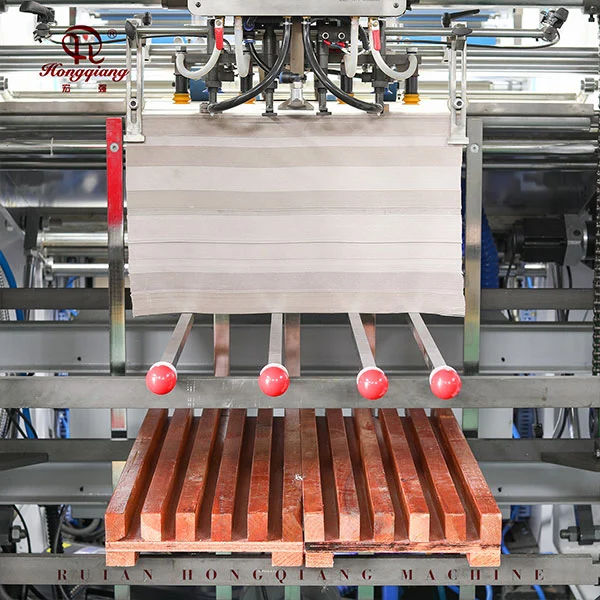

3. Precision Paper Feeding

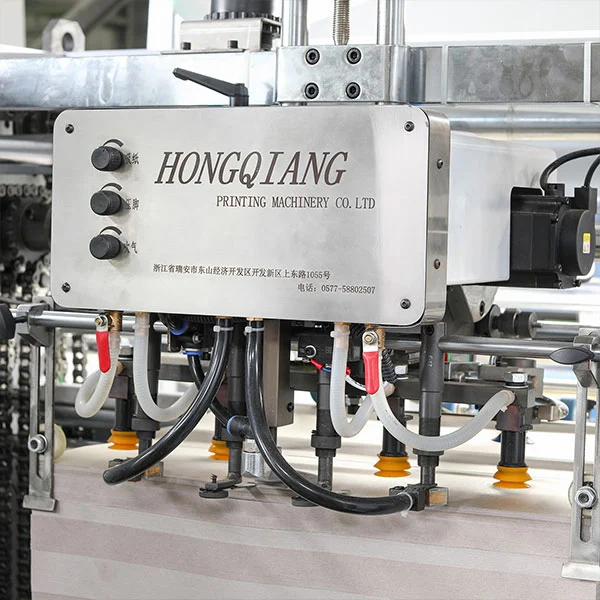

Servo-controlled feeder system enables smooth paper transport with automatic jam mitigation and adjustment.

4. Smart Alignment Technology

Servo-driven alignment provides positioning within ±1.5 mm for clean edge matching.

5. Breakthrough Heating System (3-Zone Segmented Electromagnetic Heating Roller)

• Fast Warm-Up: reaches 100°C in about 5 minutes – notably faster than conventional rollers.
• High-accuracy temperature control: maintains glue uniformity to enhance surface effect even at high speeds.
• Energy Conservation: activates the second zone for small formats ≤720 mm, saving energy by about 33%.
• Longer Lifespan: targeted heating reduces rubber roller wear and lowers maintenance costs.

6. Intelligent Operation Modes

ZDFM-A: One-touch total automation covering feeding, gluing, laminating, pressure pumping & relieving, cutting, and stacking.

ZDFM-S: Guided calibration – by entering sheet sizes via the HMI, the 14 servo units auto-adjust in under about 1 minute.

7. Zero-Downtime Productivity

Continuous plate-changing system reduces downtime and can greatly increase output.

8. Real-Time Process Control

Built-in rear-view monitoring with IoT connectivity for remote diagnostics 24 hours a day.

9. Core components from world leaders

Electrical systems: Schneider Electric (FR), Omron (JP).

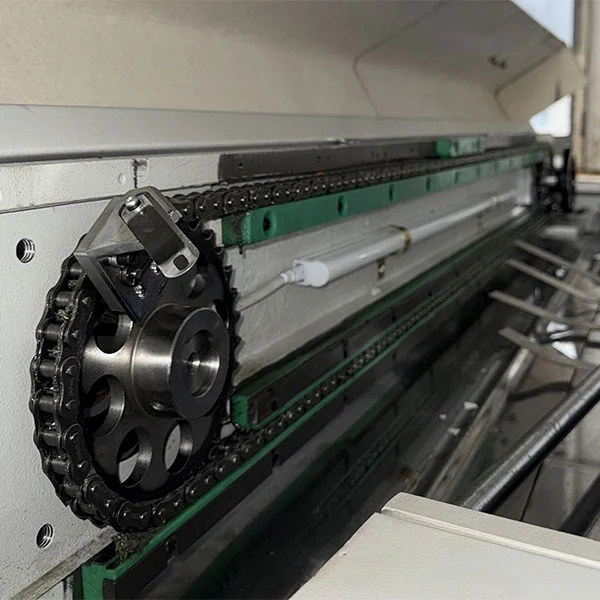

Chain knife Device(Optional)

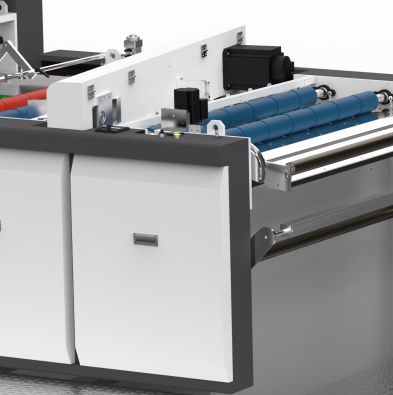

1.About Chain knife Device, servo-driven chain knife cutting film with fast speed,  suitable for PET/metal/PLA films.(Recommend for films thickness >20μm)

2.The paper cutter is equipped with a tension controller, double sets anti roll structure.  Laminating thin paper products flat and non-curly.
