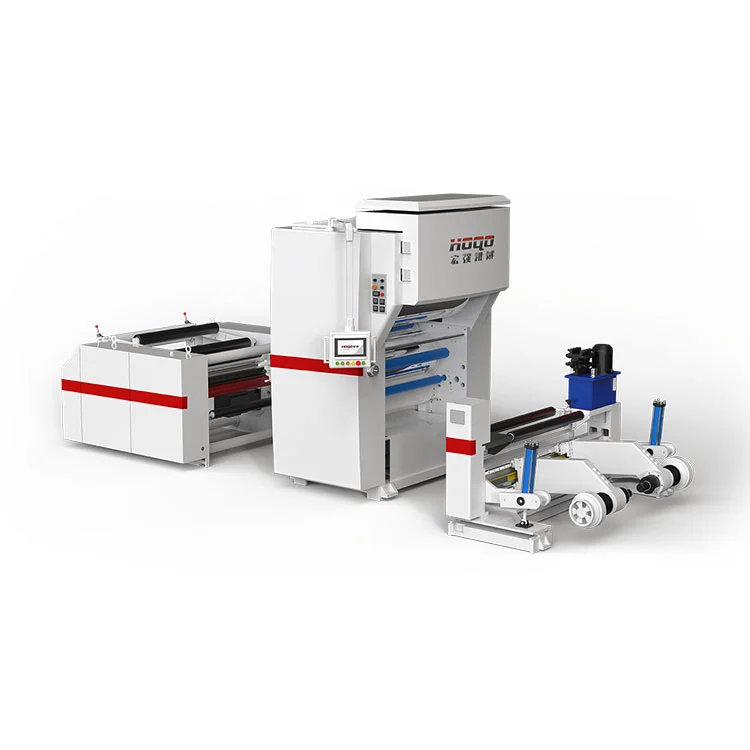

Roll-Paper Automatic Laminating Machine

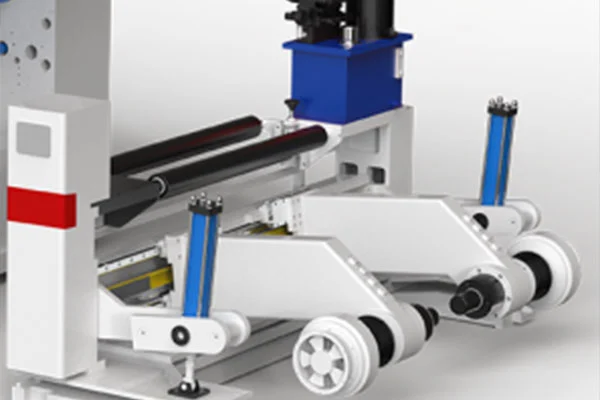

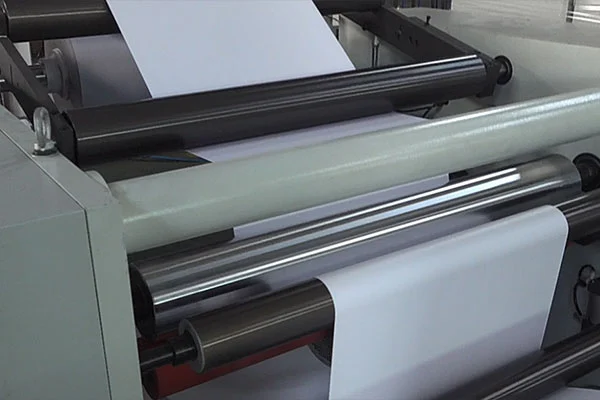

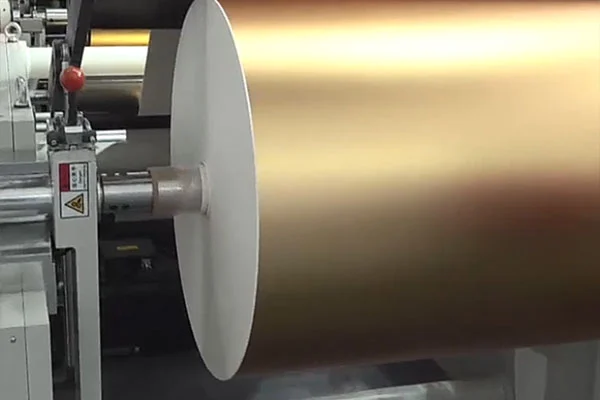

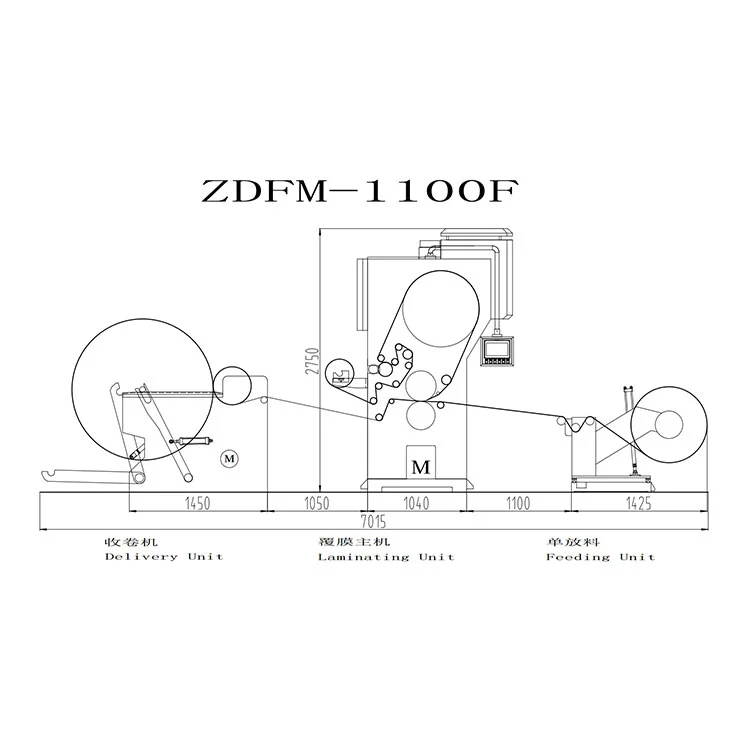

For high‑volume web‑fed orders where sheet‑fed laminating may create throughput constraints, the ZDFM‑F roll‑paper automatic laminating machine from Hongqiang supports roll‑to‑roll or roll‑to‑sheet production with a one‑button automated sequence that covers unwinding, laminating, and winding. A heavy‑duty unwinding unit accommodates rolls up to 1200 kg, assisted by magnetic powder braking and an automatic tension control system to help maintain steady feed at operating speeds of 20–100 m/min. The machine also incorporates a patented electromagnetic heating system that reaches working temperature in about five minutes and is reported to consume less energy than some conventional alternatives, together with a cast‑iron frame that contributes to structural stability during extended runs. These features are intended to support consistent lamination quality over long production runs, which may be relevant for operations looking to improve efficiency and reduce per‑unit costs in continuous processing.

Product Parameter (Specification)

Function and Features:

1. National Standard Compliance

Full-range mechanical design with safety protocols & components certified by China's High-Tech Industrial Standards.

2. Unshakable Stability

Cast iron mainframe ensures vibration-free, ultra-stable operation even under heavy-duty cycles, more than 20 years lifespan.

3. Smart Alignment Technology

Servo-driven paper alignment mechanism achieves ±1mm positioning accuracy for flawless edge matching.

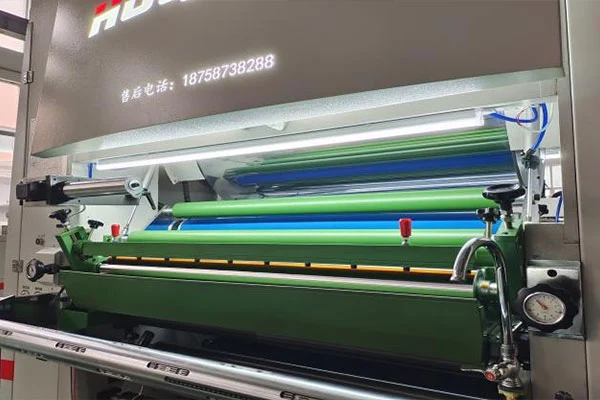

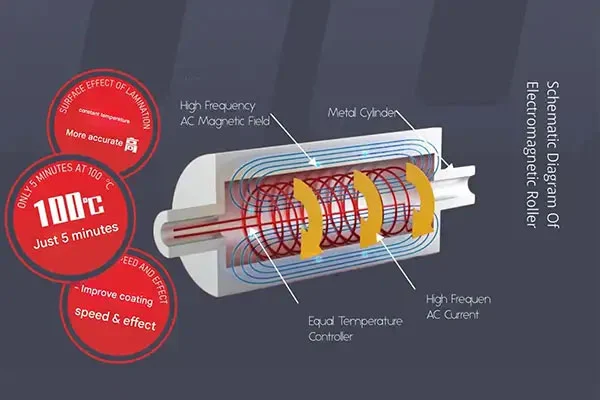

4.Breakthrough Heating System (3-Zone Segmented Electromagnetic Heating Roller)

• Instant Warm-Up (Reaches 100°C in 5 minutes — 6×faster than conventional rollers.)
• High Constant Temperature Precision (Maintains glue uniformity to improve surface effect of laminating even at high speeds.)
• Energy Conservation (Activates the second zone for small formats≤720mm, slashing energy use by 33%.)
• Longer Lifespan（Targeted heating reduces rubber roller wear, cutting maintenance costs.）

5. Intelligent Operation Modes

ZDFM-F: One-touch full automation (Automatic feeding, glue application, pressure pumping & relieving, cutting, and stacking).

ZDFM-S: Intelligent-assisted calibration (By inputting sheet sizes via the HMI, the 11 servo units automatically adjust their positions within 1 minute).

6. Real-Time Process Control

Built-in rear-view monitoring with IoT connectivity for 24/7 remote operational diagnostics.

7. Core components from world leaders

Electrical systems:  Schneider Electric (FR), Omron (JP).
