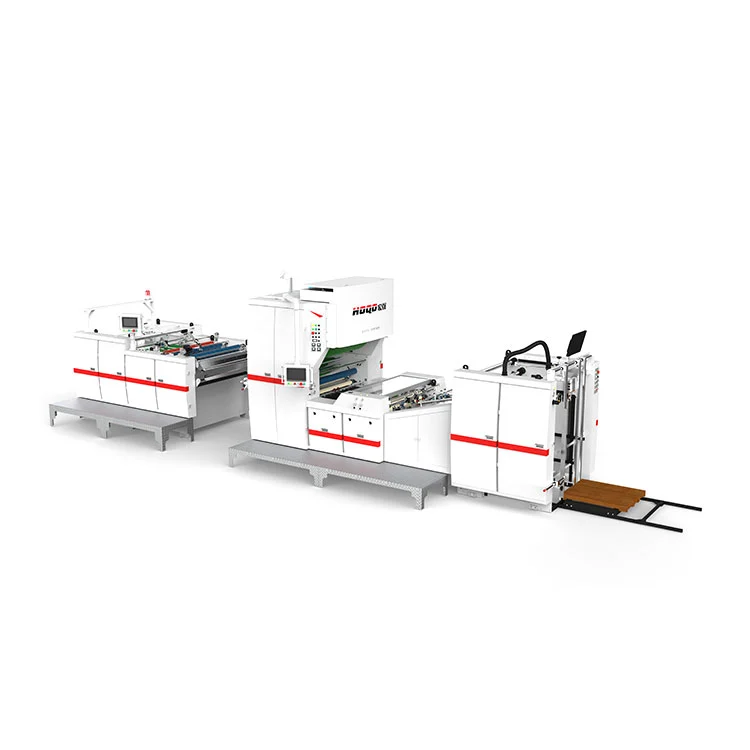

Automatic Vertical Powder-Removal Laminating Machine

Product Parameter (Specification)

Function and Features:

1. National Standard Compliance

Solid mechanical engineering with safety features certified to China's High-Tech Industrial Standards.

2. Unshakable Stability

Heavy-gauge cast iron frame furnishes stable, vibration-resistant operation under sustained heavy loads, rated for over 20 years.

3. Precision Paper Feeding

Servo-fed paper path provides reliable transport with active jam protection and self-adjustment.

4. Smart Alignment Technology

Servo-positioning system achieves ±1.5 mm accuracy for consistent edge registration.

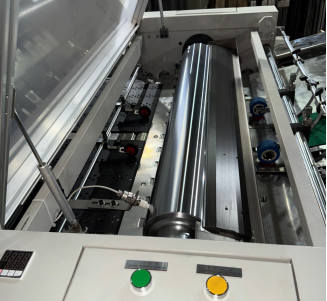

5. Next-Generation Heating (3-Zone Segmented Electromagnetic Roller)

• Accelerated Thermal Ramp: reaches 100°C in about 5 minutes – notably faster than standard roller designs.
• Stable Glue Activation: maintains uniform temperature to improve surface bonding at higher speeds.
• Selective Zone Control: for widths ≤720 mm, only the second zone is active, saving around 33% of energy.
• Extended Component Life: focused heat application reduces rubber roller degradation and service calls.

6. Intelligent Operation Modes

ZDFM-A: Full automation covering feeding, gluing, laminating, pressure pumping & relieving, cutting, and stacking.

ZDFM-S: Smart calibration assistance – enter sheet size on HMI, and 14 servos reposition within about 1 minute.

7. Zero-Downtime Productivity

Plate-changing without stopping the line minimizes interruptions and can boost throughput significantly.

8. Real-Time Process Control

Rear-view monitoring plus IoT connectivity enable remote diagnostics 24 hours a day.

9. Core components from world leaders

Electrical systems: Schneider Electric (FR), Omron (JP).

Powder Removal Part
