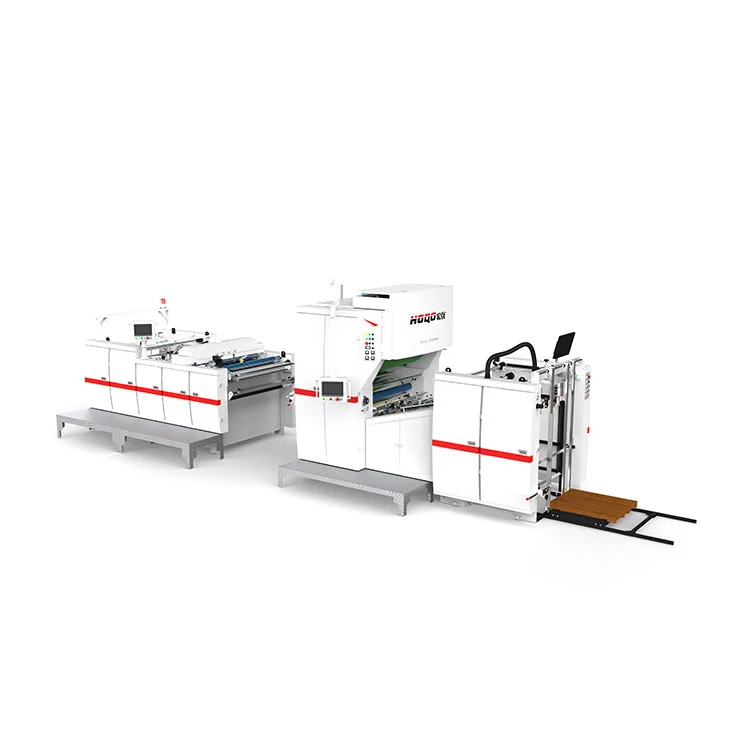

Automatic Vertical Hot Knife Laminating Machine

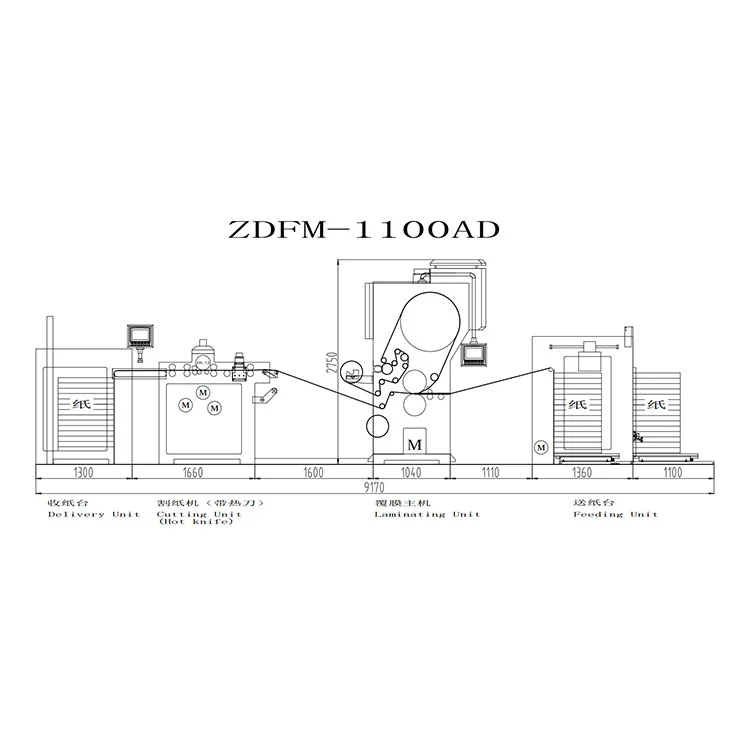

For laminating operations involving specialty films such as PET, laser, or metallic materials, the ZDFM‑AD model from Hongqiang includes an optional hot knife cutting unit that uses an instant‑heating copper blade to melt film edges during trimming—an approach that may help reduce issues like burrs, incomplete cuts, or curling sometimes seen with conventional chain knives. The machine builds on a standard automated sequence (feeding, gluing, laminating, and stacking) and employs three servo systems for tension and speed control. Its patented three‑zone electromagnetic heating system reaches 100°C in about five minutes and is reported to consume roughly 33% less energy than some conventional alternatives. With operating speeds from 20 to 100 m/min, the equipment is often chosen for high‑grade packaging, anti‑counterfeit labels, and specialty printing where clean, smooth edges are desirable. In addition to the hardware, Hongqiang offers process support tailored to special materials, which can help maintain consistent production quality even at higher output rates.

Product Parameter (Specification)

Function and Features:

1. National Standard Compliance

Rigorous mechanical construction with safety features conforming to China's High-Tech Industrial Standards.

2. Unshakable Stability

Durable cast-iron base facilitates stable, low-amplitude vibration performance even under intensive duty cycles, designed for 20+ years.

3. Precision Paper Feeding

Servo-operated feed system facilitates trouble-free media movement with continuous self-correction against jams.

4. Smart Alignment Technology

Precision registration system secures ±1.5 mm tolerance for predictable edge alignment.

5. Advanced Thermal Assembly (3-Zone Segmented Electromagnetic Roller)

• Rapid Thermal Response: reaches 100°C in about 5 minutes – markedly better than conventional heating rollers.
• Uniform Thermal Profile: ensures consistent adhesive activation for superior surface bonding at speed.
• Zone-Selective Heating: only the second zone operates for small formats ≤720 mm, saving roughly 33% of energy.
• Wear Mitigation: targeted heat application reduces rubber roller deterioration and associated upkeep.

6. Intelligent Operation Modes

ZDFM-A: Automated process cycle covering all stages from feeding to stacking.

ZDFM-S: User-guided calibration – input sheet dimensions via HMI, and 14 servos auto-adjust within about 1 minute.

7. Zero-Downtime Productivity

Plate-changing without halting the line reduces operational pauses and can deliver substantial throughput improvements.

8. Real-Time Process Control

Rear-view monitoring plus IoT connectivity supports remote surveillance and diagnostics around the clock.

9. Core components from world leaders

Electrical systems: Schneider Electric (FR), Omron (JP).

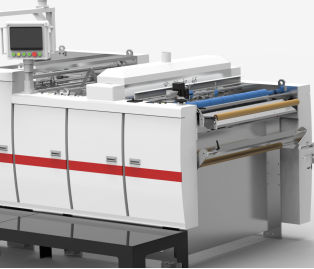

Hot knife Device(Optional)

1.Hot Knife Device, Copper blade with instant heat, film cutting without tail film,  fuzzy edges, fast speed, precise cutting, suitable for various thin films,perfect for  PET/aluminum films.

2.The paper cutter is equipped with a tension controller, cooperates anti roll  structure. Laminating thin paper products flat and non-curly.
