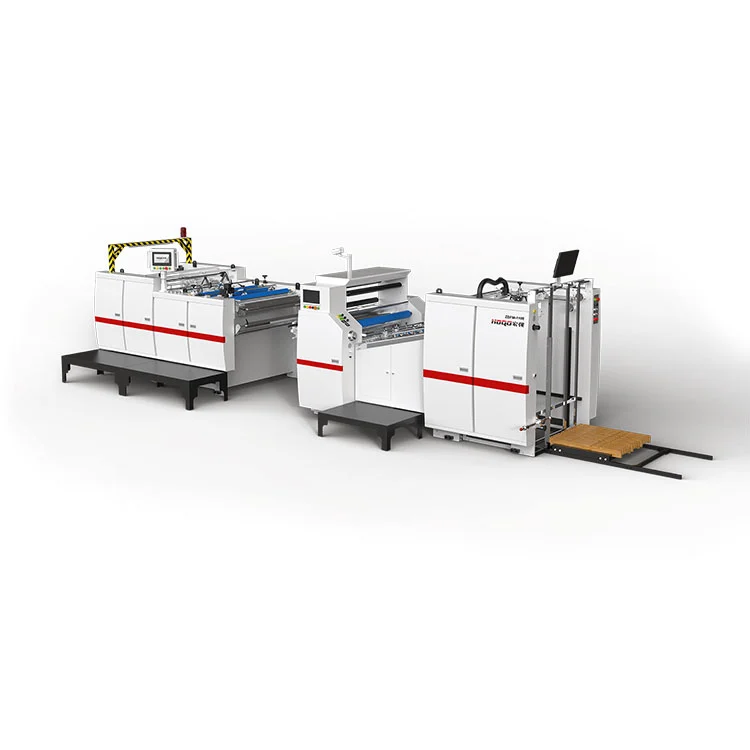

Thermal Film Pre-coating Laminating Machine

Product Parameter (Specification)

Function and Features:

1. National Standard Compliance

Full-range mechanical design with safety protocols & components certified by China's High-Tech Industrial Standards.

2. Unshakable Stability

Cast iron mainframe ensures vibration-free, ultra-stable operation even under heavy-duty cycles, more than 20 years lifespan.

3. Precision Paper feeding

Servo-controlled feeder system guarantees smooth, jam-free paper transport with automatic adjustment.

4. Smart Alignment Technology

Servo-driven paper alignment mechanism achieves ±1.5mm positioning accuracy for flawless edge matching.

5. Breakthrough Heating System (3-Zone Segmented Electromagnetic Heating Roller)

• Instant Warm-Up (Reaches 100°C in 5 minutes — 6×faster than conventional rollers.)
• High Constant Temperature Precision (Maintains glue uniformity to improve surface effect of laminating even at high speeds.)
• Energy Conservation (Activates the second zone for small formats≤720mm, slashing energy use by 33%.)
• Longer Lifespan（Targeted heating reduces rubber roller wear, cutting maintenance costs.）

6. Intelligent Operation Modes

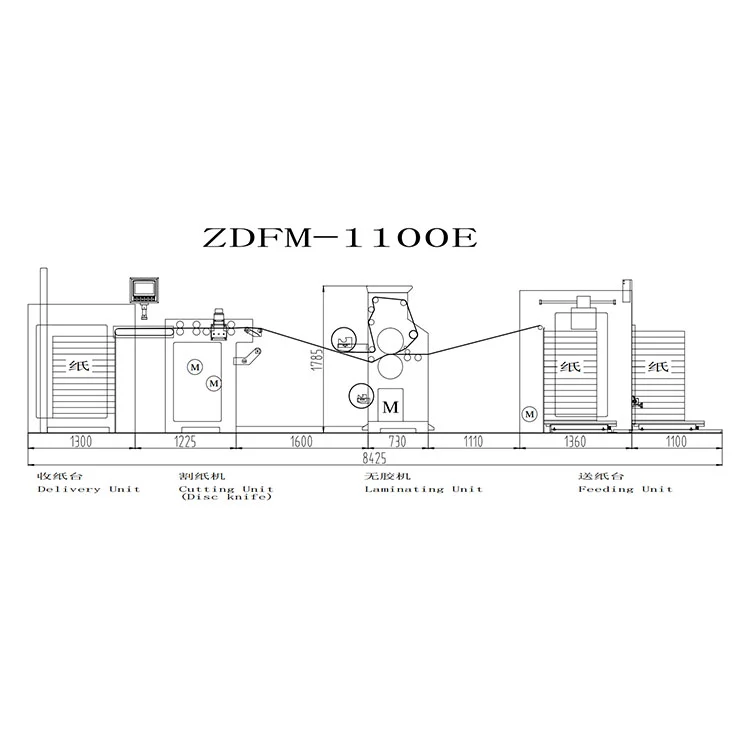

ZDFM-E: One-touch full automation (Automatic feeding, glue application, pressure pumping & relieving, cutting, and stacking).

ZDFM-S: Intelligent-assisted calibration (By inputting sheet sizes via the HMI, the 11 servo units automatically adjust their positions within 1 minute).

7. Zero-Downtime Productivity

Continuous plate-changing system eliminates downtime, boosting output by 100%.

8. Real-Time Process Control

Built-in rear-view monitoring with IoT connectivity for 24/7 remote operational diagnostics.

9. Core components from world leaders

Electrical systems:  Schneider Electric (FR), Omron (JP).

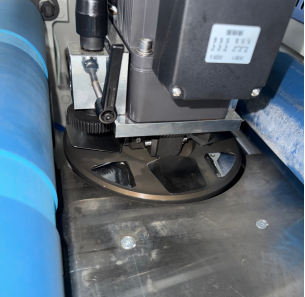

Disc Knife Device(Standard)

1.The disc knife is equipped with 4 blades, which can cut the film at the product joint position by rotating the disc knife device.

2.Horizontal cutting can better cut the film without damaging the paper surface, controlled by a separate frequency converter, and the speed can be freely selected to cope with different situations.

Grinding Wheel Cutter Device(Standard)

1.The grinding wheel cutter‌ efficiently grinds the surface of the film in the lap without damaging the printed layer. It cooperates with bounce rollers‌, enabling rapid separation of the material. ‌Particularly suited for processing pressure-sensitive adhesive (PSA) .

2.The bounce rollers adopts a self-developed paper pulling mechanism, which uses the speed difference to quickly break the film and separate the paper. It achieves product no tail film and no roll film.
