Intelligent Cold Foil UV Curing Cooling Water Screen Printing Machine

Hongqiang, as a professional R&D and manufacturing factory of Intelligent Cold Foil UV Curing Cooling Water Screen Printing Machine in China, specializes in mass production, strict ISO quality control and OEM/ODM service. Widely applicable for multi-color printing and cold foil decoration on printing premium gift boxes, mooncake boxes, tobacco/alcohol packaging, and similar products, enhancing product sophistication and appeal.

Product Parameters

Technical Features

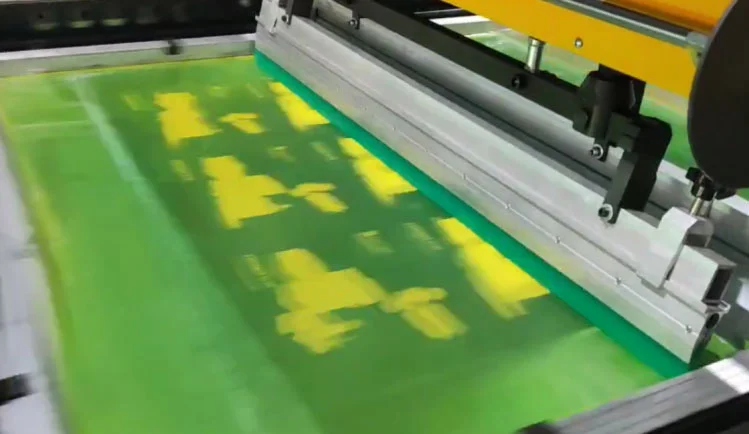

Intelligent Cold Foil UV Curing Cooling Water Screen Printing Machine employs high-precision servo motors to drive critical components such as the print head, turntable, and screen frame, enabling 360° stepless speed adjustment and precise positioning. This eliminates gear transmission errors, ensuring perfect alignment between printed patterns and containers—particularly suited for complex multicolor printing. It supports rapid plate changes and setup; for instance, a single-color calibration instantly by the screen, significantly reducing downtime.

Snowflake Curing Device: When product exposed to UV light, the ink wrinkles up and hardens, creating a fine, sandy texture on the printed surface that resembles thin snow or ice crystals. The patterns have a strong 3D effect, looking luxurious and elegant, and feeling delicate and unique to the touch. This technique is often used in tobacco and alcohol packaging, as well as holiday decorations, to elevate the product's appeal.

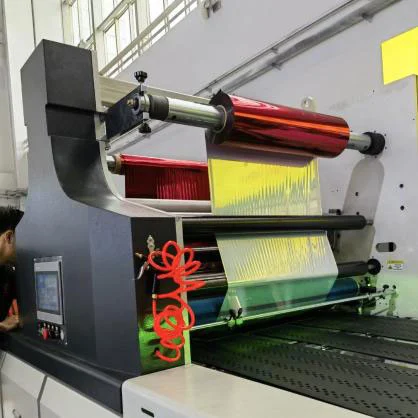

Cold Foil Stamping Process: By leveraging the strong adhesion of screen printing ink prior to its complete drying, UV-curing adhesive is precisely applied onto the substrate's surface. Subsequently, the foil film is transferred under pressure to achieve a metallic graphic effect. Compared to traditional hot stamping, this method eliminates the need for metal stamping dies, significantly cuts down on energy consumption, and delivers a pronounced three-dimensional stamping appearance.

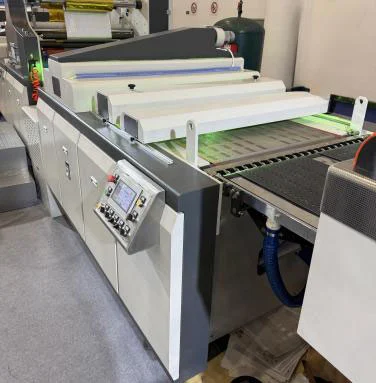

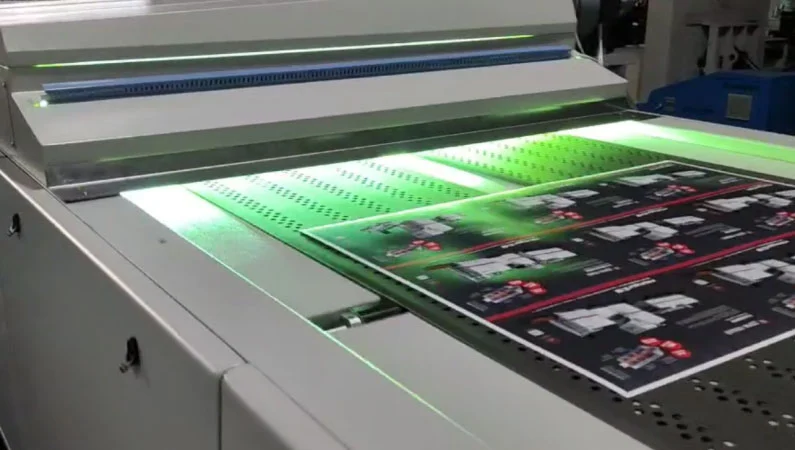

UV Curing System: Immediately exposes printed surfaces to UV LED light, triggering a chemical reaction in the ink's photoinitiators. This instantly solidifies liquid ink into a solid state within seconds, significantly boosting production efficiency.

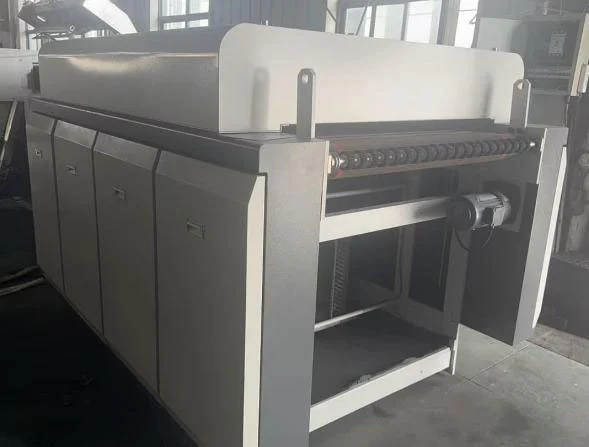

Cooling Water Device: The air-cooled chiller can quickly remove the surface temperature of the product, allowing it to quickly enter the next process and saving time for product cooling.

Energy-Efficient & Eco-Friendly: LED UV lamps consume only 1/4 the energy of traditional methods with zero ozone emissions, meeting green production standards.

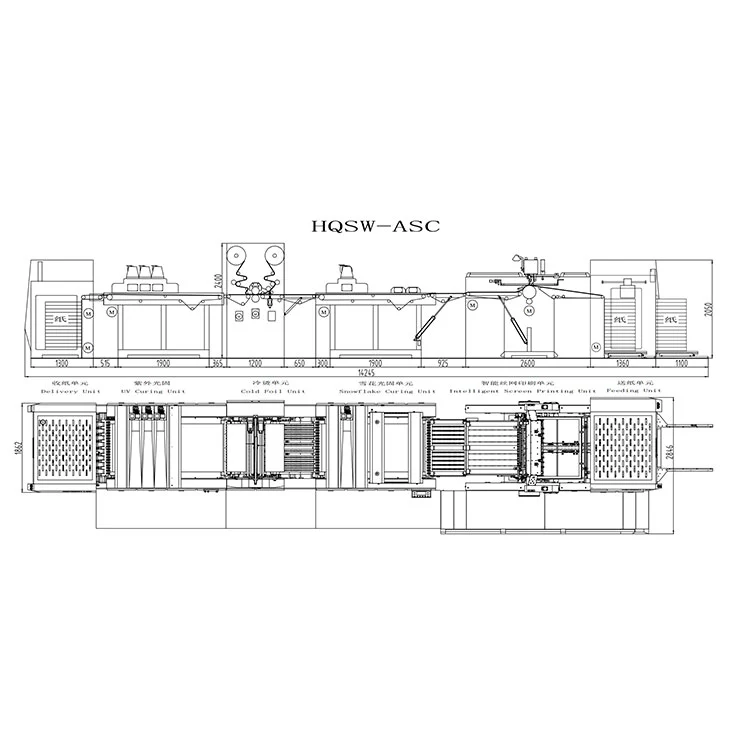

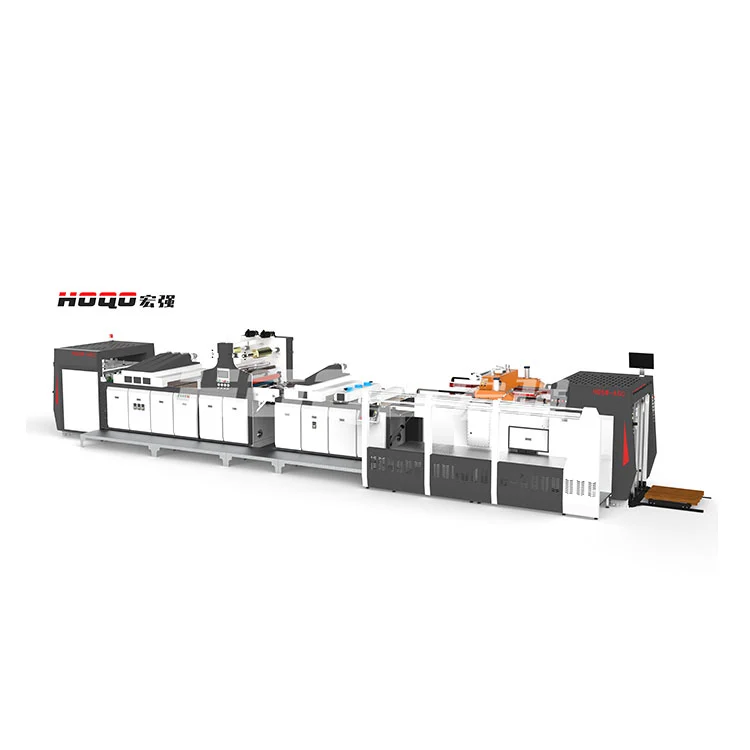

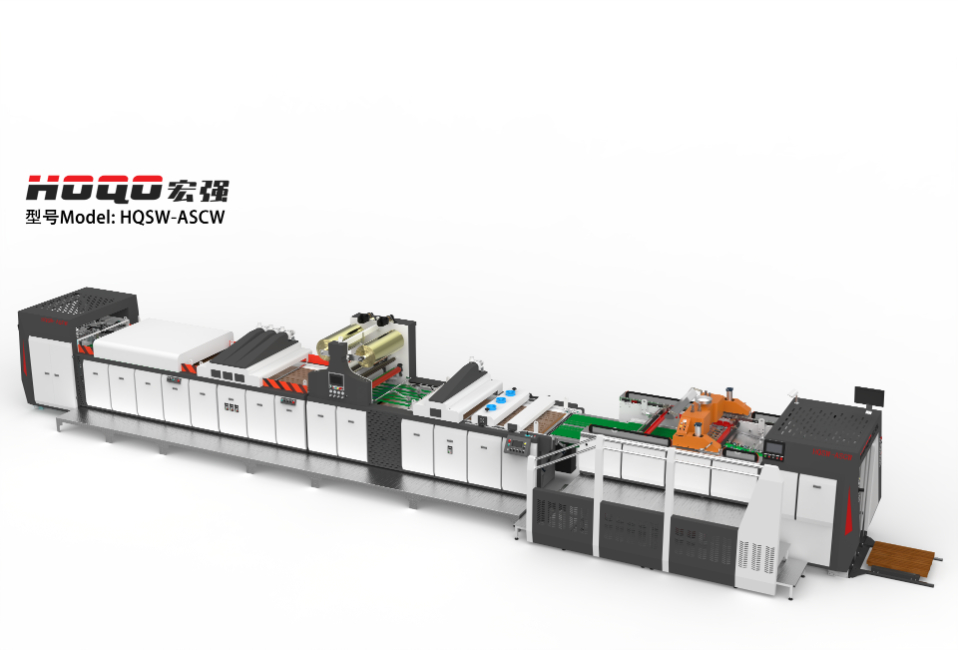

Supports integrated processes including snowflake effect, cold foil stamping, cooling water effect. For example, one model connects to an automatic screen printer to form a four-in-one production line ( spot UV, snowflake, cold foil, cooling water), reducing equipment procurement costs.

Equipped with a PLC touchscreen for centralized control of parameters like printing speed, ink volume, and curing time. Intelligent Cold Foil UV Curing Cooling Water Screen Printing Machine employs linear high-speed.

Why Choose Us?

1. Professional Team Configuration

R&D Department: 3 members handling OEM & ODM projects; Sales Department: 8 international sales representatives and 10 domestic sales representatives.

2. After-Sales Service System

Provides online training, remote technical support, video technical guidance, and one-year warranty service.

Welcome your Inquiry!
