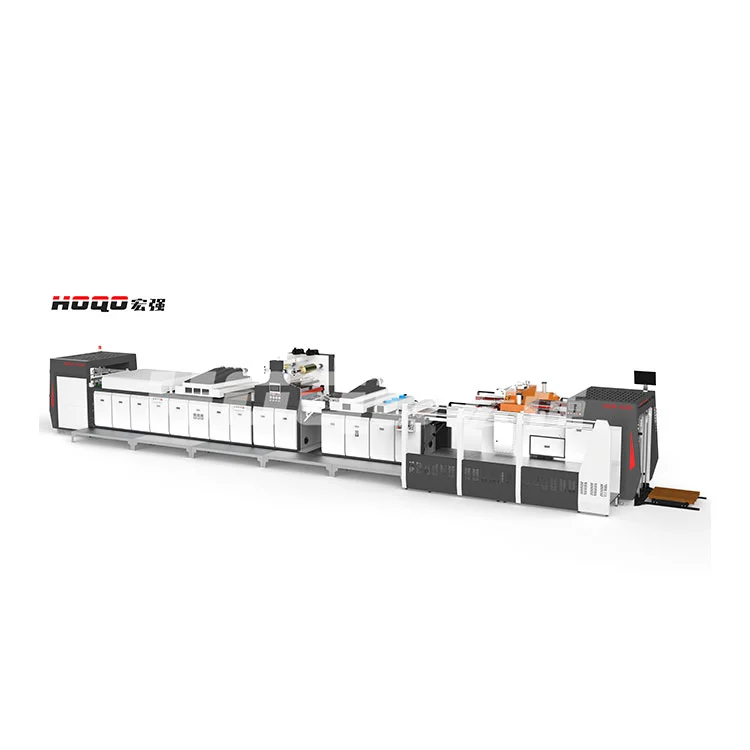

Intelligent Snowflake Cold Foil UV Curing Screen Printing Machine

As a professional manufacturer of printing equipment in China, Hongqiang offers the high-quality HQSW-ASC Intelligent Snowflake Cold Foil UV Curing Screen Printing Machine. Specifically designed for high-end packaging applications, this machine is ideally suited for products such as tobacco and liquor packaging, mooncake boxes, and gift boxes. The equipment utilizes high-precision servo drive technology to achieve 360° stepless speed control and precise positioning. It supports rapid plate changes, requiring only 20 minutes for single-color calibration—thereby significantly boosting production efficiency.

Product Parameters

Model	HQSW-1100ASC	HQSW-1450ASC
Max.paper Sheet Size	1060mm*780mm	1450mm*1050mm
Min. paper Sheet Size	350mm*350mm	470mm*350mm
Max. Printing Size	1050mm*750mm	1400mm*1050mm
Screen Frame Size	1140mm*1270mm	1670mm*1410mm
Paper Thickness	150-500g/㎡	150-500g/㎡
Printing Speed	500-4500 sheet/h	500-4000 sheet/h
Power	3P 380V 50Hz 75kw	3P 380V 50Hz 75kw
Host Machine Dimensions(L*W*H)	5150*2846*2100（mm）	6100*3200*2100（mm）

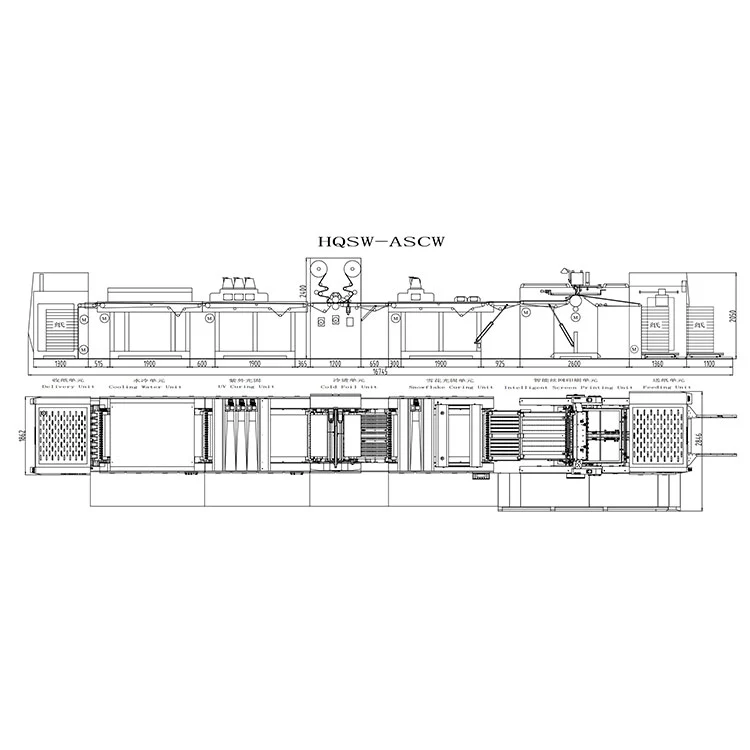

Total Machine Dimensions(L*W*H)	14245*2846*2400（mm）	15445*3200*2100（mm）
Weight	≈12800kg	≈13300kg

Technical Features

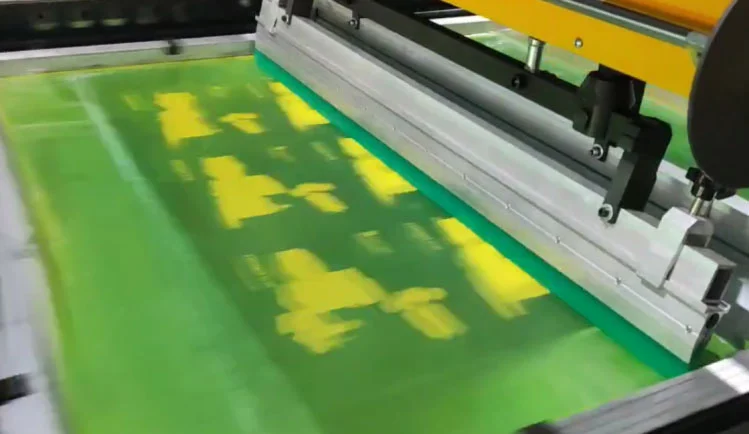

Intelligent Snowflake Cold Foil UV Curing Screen Printing Machine employs high-precision servo motors to drive critical components such as the print head, turntable, and screen frame, enabling 360° stepless speed adjustment and precise positioning. This eliminates gear transmission errors, ensuring perfect alignment between printed patterns and containers—particularly suited for complex multicolor printing. It supports rapid plate changes and setup; for instance, a single-color calibration on certain models takes only 20 minutes, significantly reducing downtime.

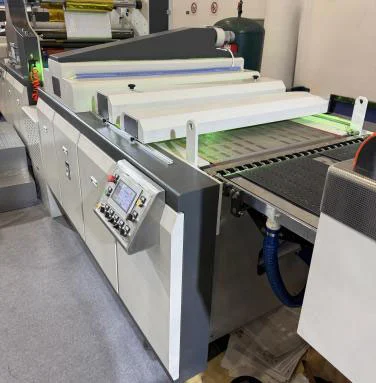

Snowflake Curing Device: When product exposed to UV light, the ink wrinkles up and hardens, creating a fine, sandy texture on the printed surface that resembles thin snow or ice crystals. The patterns have a strong 3D effect, looking luxurious and elegant, and feeling delicate and unique to the touch. This technique is often used in tobacco and alcohol packaging, as well as holiday decorations, to elevate the product's appeal.

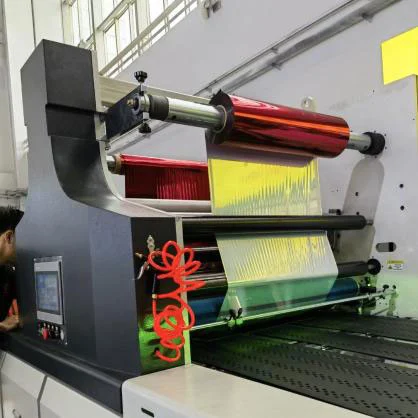

Cold Foil Stamping Process: By leveraging the strong adhesion of screen printing ink prior to its complete drying, UV-curing adhesive is precisely applied onto the substrate's surface. Subsequently, the foil film is transferred under pressure to achieve a metallic graphic effect. Compared to traditional hot stamping, this method eliminates the need for metal stamping dies, significantly cuts down on energy consumption, and delivers a pronounced three-dimensional hot stamping appearance.

Modular design facilitates functional expansion and maintenance. For instance, a specific model incorporates a patented film roll conversion device enabling rapid roll position switching to boost production efficiency.

Equipped with a PLC touchscreen for centralized control of parameters like printing speed, ink volume, and curing time. Supports parameter storage and recall to streamline operation workflows. Intelligent Snowflake Cold Foil UV Curing Screen Printing Machine employs linear high-speed

FAQs

Q1: What types of products can be printed on this machine?

The full servo UV curing snowflake screen printing machine HQSW-ASC is specially designed for high-end packaging production which need snowflake step and cold foil. It is widely utilized in printing premium gift boxes, mooncake boxes, tobacco/alcohol packaging, and similar products.

Q2: What is your warranty policy?

We offer a 12-month warranty for the entire unit and extended support for critical components.
