Intelligent UV Curing Screen Printing Machine

Intelligent UV Curing Screen Printing Machine is a new-generation product developed by Hongqiang, a professional manufacturer and supplier in China, adopting our R&D team's innovations advanced technologies. It provides screen printing solutions for complex patterns and meets customers' screen printing requirements. This equipment features high performance, high efficiency, and high precision. It can meet the specialized needs of printed surface finishing, elevating the quality level of your screen printing products to a new standard. It saves both manpower and material resources while significantly shortening the production cycle.

Core Advantages

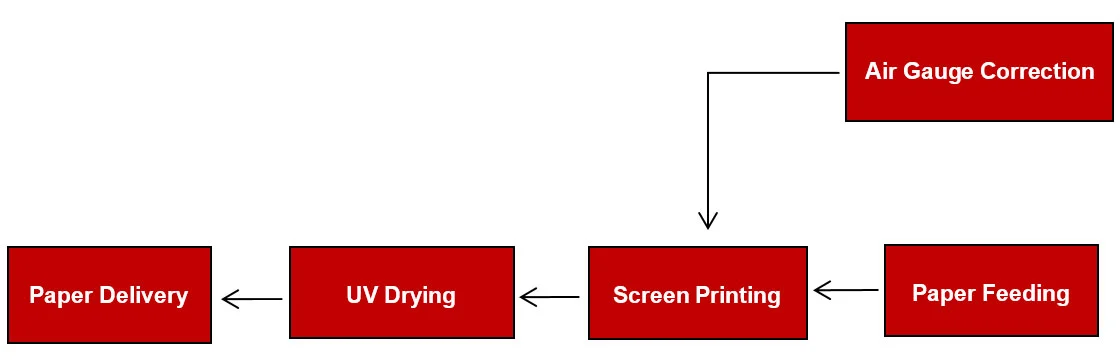

Intelligent Operation: This Intelligent UV Curing Screen Printing Machine features a fully servo intelligent control system. With one-button start, it automatically completes a series of actions—including paper transportation, screen printing, drying, cooling, and paper collection—offering precision, high efficiency, and ease of operation.

High-Speed Precision: Delivers 500–4,500 sheets per hour with stable, high-quality registration accuracy.

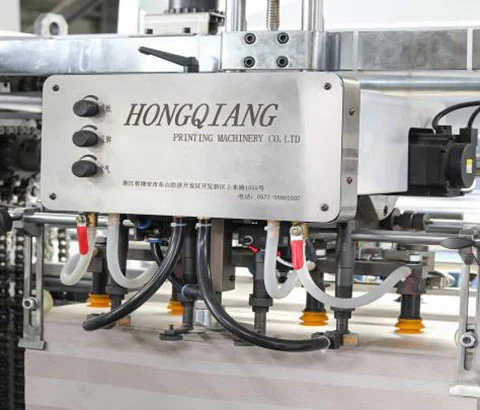

Technological breakthrough: This Intelligent UV Curing Screen Printing Machine uses a pneumatic ruler structure for precise deviation correction, effectively solving the traces caused by traditional mechanical rulers and ensuring complete product printing.

User-Friendly PLC Control: Intuitive touchscreen for effortless setup of printing parameters and diameter.

Robust Reliability: The main unit of this machine adopts a double-layer cast iron wall plate to form a gearbox, where the lubricating oil effectively extends the gear life.

FAQs

Q1: What types of products can be printed on this machine?

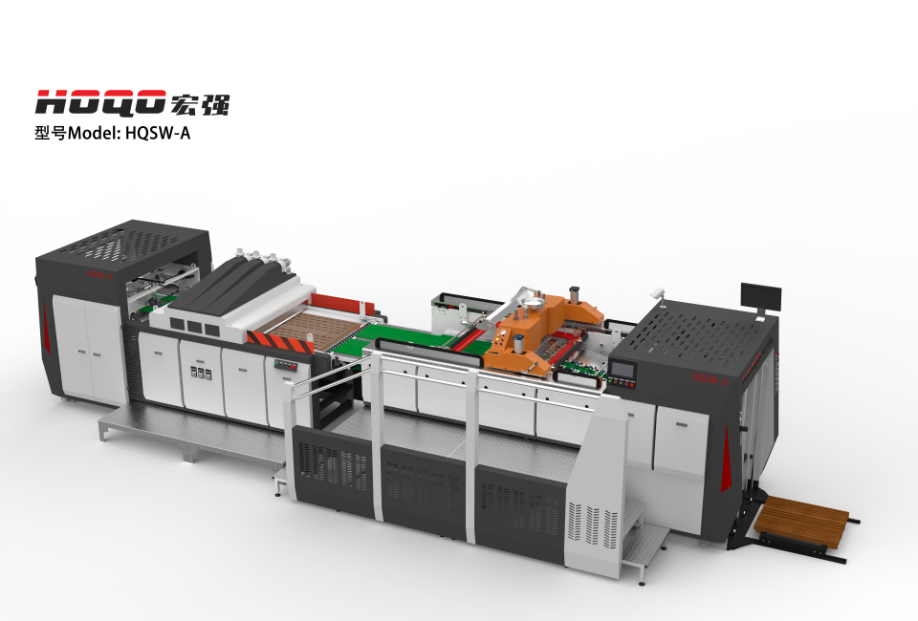

The full servo UV curing screen printing machine HQSW-A is specially designed for high-end packaging production. It is widely utilized in printing premium gift boxes, mooncake boxes, tobacco/alcohol packaging, and similar products. By significantly enhancing texture and visual appeal, it elevates product sophistication, making it the optimal choice for printing and packaging enterprises.

Q2: What is the typical set-up time for order transitions?

With our quick change system, most product changes can be made in 10 minutes.

Q3: What technical support do you provide?

We offer comprehensive support, including:
Technical support services free online and paid offline (including machine installation, debugging, and maintenance) for our products based on the buyer's requirements.
