Intelligent UV Curing Snowflake Curing Screen Printing Machine

As a professional manufacturer specializing in high-quality Intelligent UV Curing Snowflake Curing Screen Printing Machines, Hongqiang is delighted to offer you our top-of-the-line equipment. The HQSW-1100AS delivers exceptional screen printing solutions tailored for intricate snowflake patterns, fully meeting our customers' diverse screen printing demands. This machine boasts remarkable flexibility, allowing for swift adjustments of printing parameters such as pressure, speed, and mesh tension to accommodate varying product specifications. Such adaptability ensures it can effortlessly fulfill a wide range of customized printing requirements, making it the perfect choice for producing high-end, bespoke products.

Send Inquiry

Product Description

The Intelligent UV Curing Snowflake Curing Screen Printing Machine, a new-gen product by Hongqiang manufacturer from China, incorporates our R&D team's innovative tech. It offers high performance, efficiency, and precision, meeting specialized finishing needs and elevating screen printing quality to new heights, while saving resources and shortening production cycles.

Model	HQSW-1100AS	HQSW-1450AS
Max.paper Sheet Size	1060mm*780mm	1450mm*1050mm
Min. paper Sheet Size	350mm*350mm	470mm*350mm
Max. Printing Size	1050mm*750mm	1400mm*1050mm
Screen Frame Size	1140mm*1270mm	1670mm*1410mm
Paper Thickness	150-500g/㎡	150-500g/㎡
Printing Speed	500-4500 sheet/h	500-4000 sheet/h
Power	3P 380V 50Hz 75kw	3P 380V 50Hz 75kw

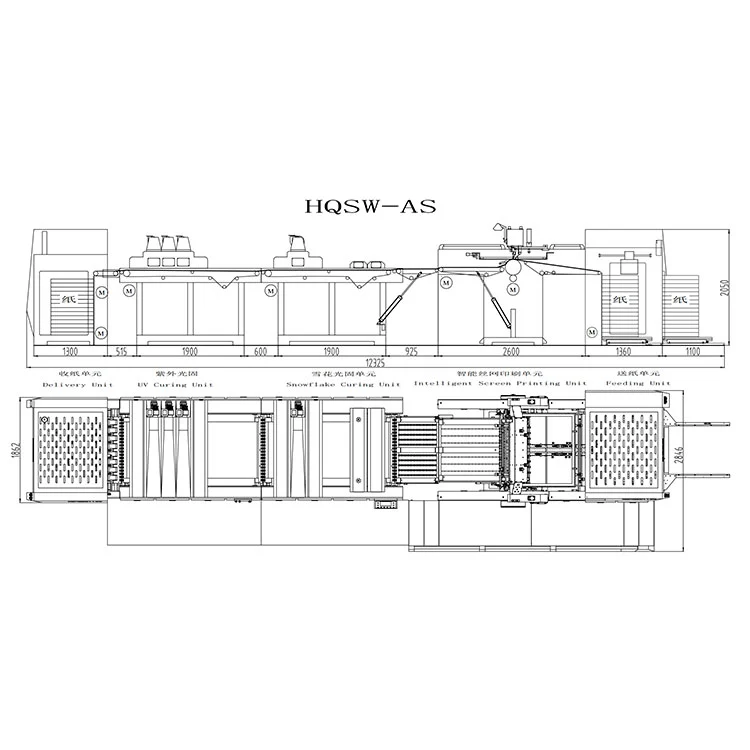

Host Machine Dimensions(LWH)	515028462100（mm）	610032002100（mm）
Total Machine Dimensions(LWH)	1232528462100（mm）	1352532002100（mm）
Weight	≈11000kg	≈11800kg

Core Advantages

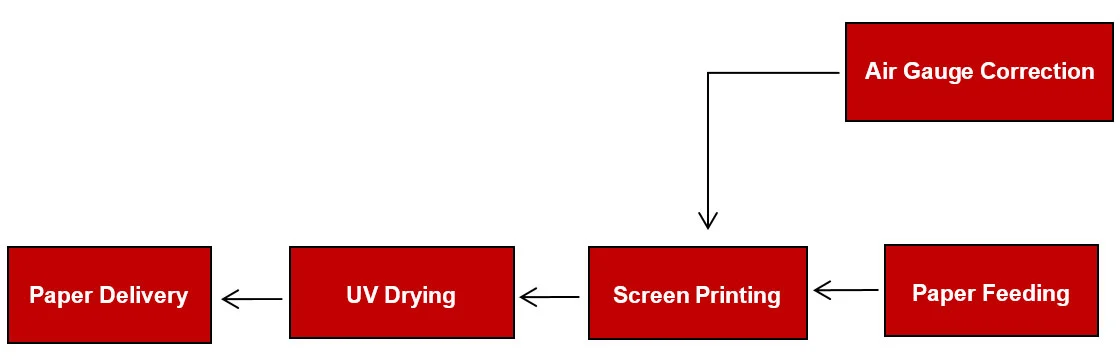

Intelligent Operation: This Intelligent UV Curing Snowflake Curing Screen Printing Machine adopts a fully servo intelligent control system, one-button start, and automatically completes a series of actions including paper transportation, screen printing, drying, cooling, and paper collection, with precision, efficiency, and ease of operation.

Intelligent Uv Curing Snowflake Curing Screen Printing Machine

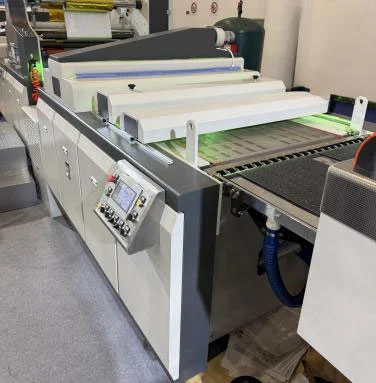

Snowflake Curing Device: When product exposed to UV light, the ink wrinkles up and hardens, creating a fine, sandy texture on the printed surface that resembles thin snow or ice crystals. The patterns have a strong 3D effect, looking luxurious and elegant, and feeling delicate and unique to the touch. This technique is often used in tobacco and alcohol packaging, as well as holiday decorations, to elevate the product's appeal.

Intelligent Uv Curing Snowflake Curing Screen Printing Machine

High-Speed Precision: Achieves 500-4500 sheets per hour while ensuring stable, high-quality registration accuracy.

User-Friendly PLC Control: Intuitive touchscreen for effortless setup of printing parameters and diameter.

Robust Reliability: The main unit of this machine adopts a double-layer cast iron wall plate to form a gearbox, where the lubricating oil effectively extends the gear life.

Intelligent Uv Curing Snowflake Curing Screen Printing Machine

FAQs

Q1: What types of products can be printed on this machine?

The Intelligent UV Curing Snowflake Curing Screen Printing Machine HQSW-AS is specially designed for high-end packaging production which need snowflake step. It is widely utilized in printing premium gift boxes, mooncake boxes, tobacco/alcohol packaging, and similar products.

Q2: What is your warranty policy?

We offer a 12-month warranty for the entire unit and extended support for critical components.

Q3: Can the machine be customized according to specific requirements?

Yes, we offer a wide range of customization options, including:
Cooling Water unit, Snowflake Curing unit, Cooling Water unit, Cold Foil unit.
