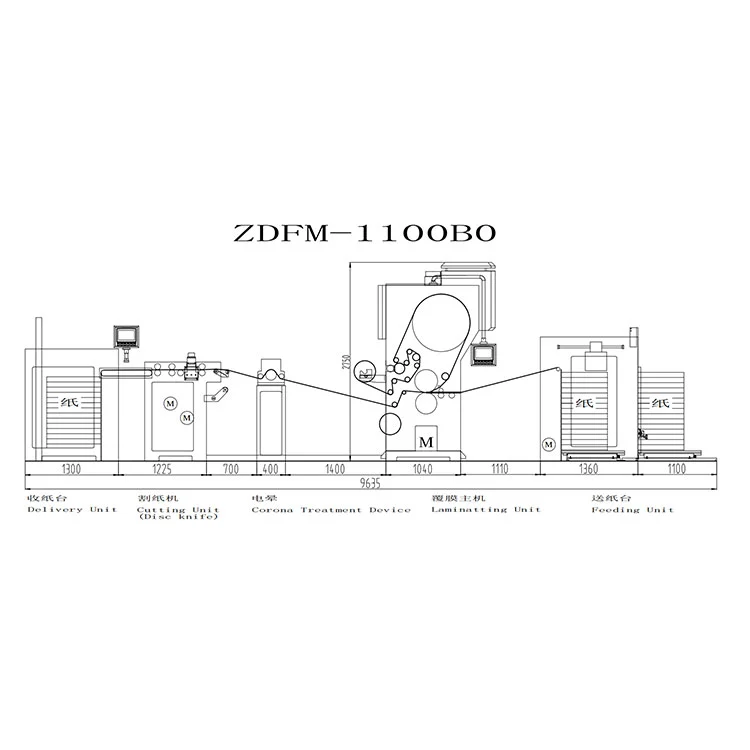

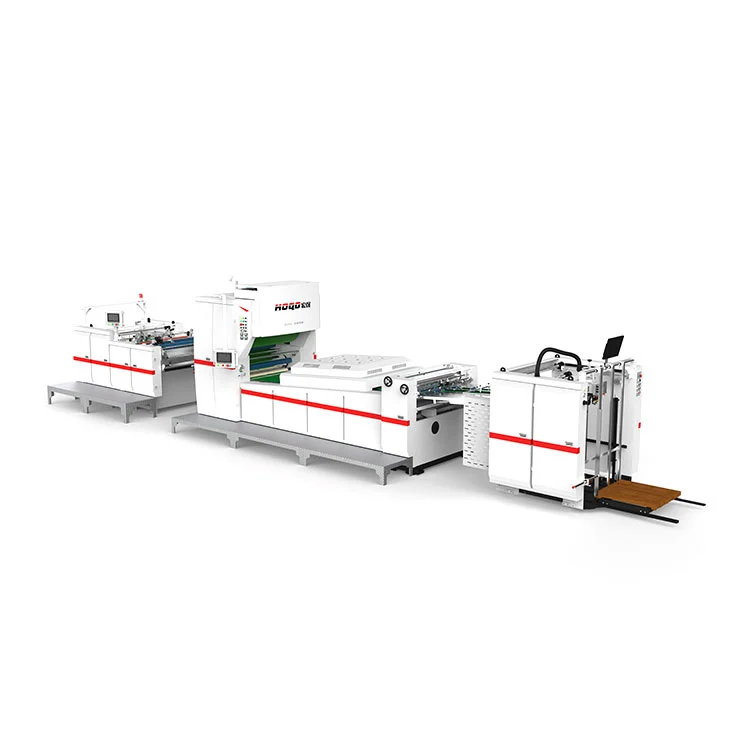

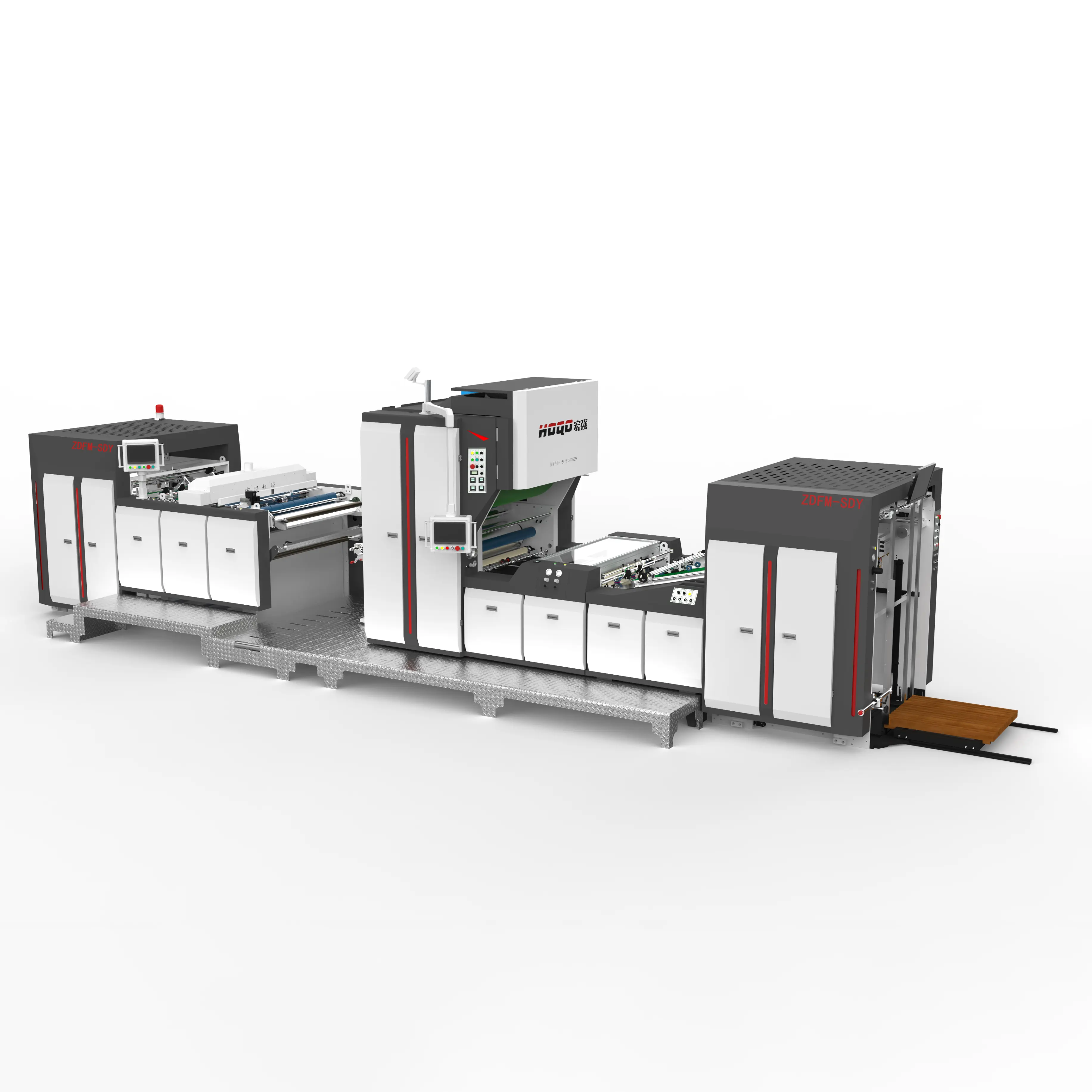

Intelligent Servo Corona Treatment Laminating Machine

For finishing applications where static charge or adhesion performance may affect final quality, the Intelligent Servo Corona Treatment Laminating Machine can be fitted with an optional corona unit that operates after lamination. This unit applies high-voltage discharge to induce mild surface oxidation, which may help reduce static buildup and enhance receptivity to inks and adhesives. The machine also features servo‑driven changeovers and a rigid construction that supports stable running at typical production speeds. Such a configuration is sometimes chosen for premium packaging or electronic manuals, where surface consistency and bond strength are often of particular interest.

Product Parameter (Specification)

Function and Features:

1. National Standard Compliance

Broad mechanical design with safety protocols and components certified to China's High-Tech Industrial Standards.

2. Unshakable Stability

Cast iron mainframe delivers stable, low-vibration operation even under heavy-duty cycles, with a lifespan of over 20 years.

3. Precision Paper Feeding

Servo-controlled feeder system offers smooth paper transport with automatic jam mitigation and adjustment.

4. Smart Alignment Technology

Servo-driven alignment holds positioning within ±1.5 mm for consistent edge matching.

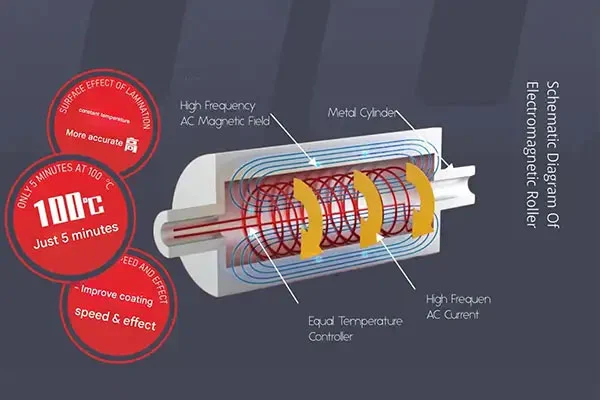

5. Breakthrough Heating System (3-Zone Segmented Electromagnetic Heating Roller)

• Fast Warm-Up: reaches 100°C in about 5 minutes – significantly faster than conventional rollers.
• Uniform temperature control: maintains glue uniformity to improve surface effect even at high speeds.
• Energy Conservation: activates the second zone for small formats ≤720 mm, saving about 33% of energy.
• Longer Lifespan: targeted heating reduces rubber roller wear and lowers maintenance costs.

6. Intelligent Operation Modes

ZDFM-A: One-touch automation covering feeding, gluing, laminating, pressure pumping & relieving, cutting, and stacking.

ZDFM-S: Intelligent calibration support – by inputting sheet sizes via the HMI, the 14 servo units auto-position in approximately 1 minute.

7. Zero-Downtime Productivity

Continuous plate-changing system reduces downtime and can improve output by a notable amount.

8. Real-Time Process Control

Built-in rear-view monitoring with IoT connectivity for remote diagnostics 24 hours a day.

9. Core components from world leaders

Electrical systems: Schneider Electric (FR), Omron (JP).

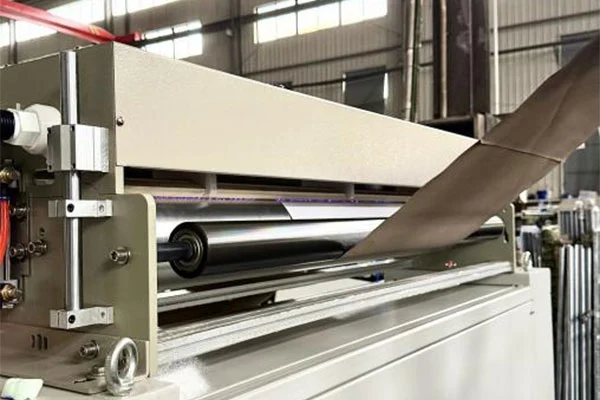

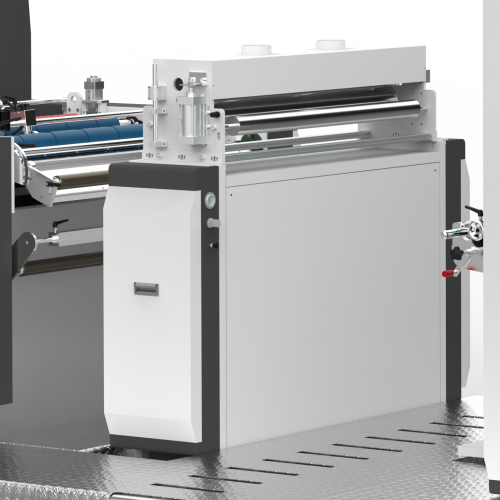

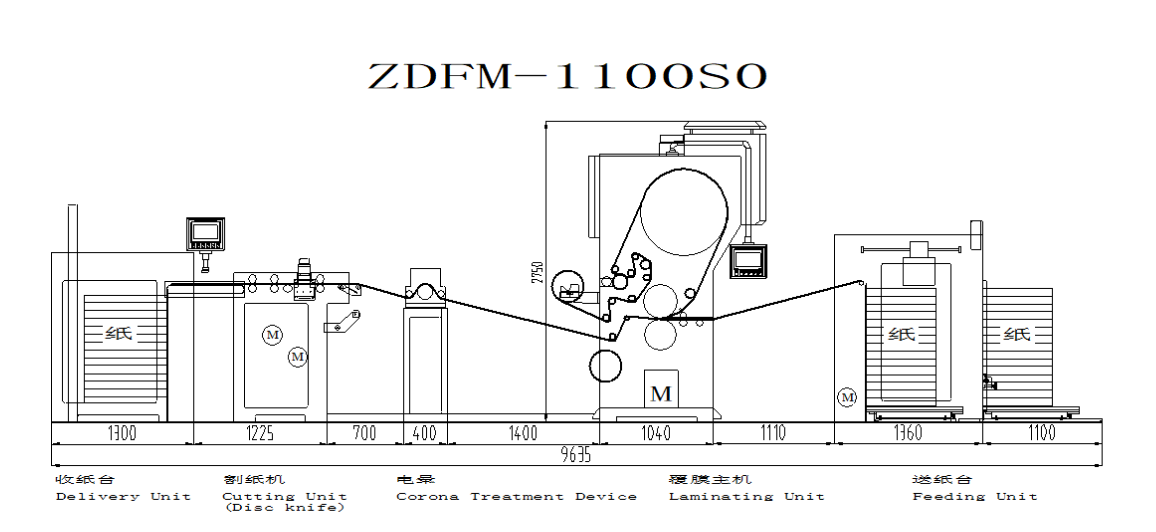

Corona Treatment Device(Optional)

FAQ

Q1: What is the purpose of the corona treatment device on the Intelligent Servo Corona Treatment Laminating Machine?

A1: It applies high-voltage discharge to the laminated surface, creating micro-oxides that increase surface energy (Dyne value) – improving ink and adhesive adhesion for subsequent processes. This optional device enhances the Intelligent Servo Corona Treatment Laminating Machine.

Q2: In which scenarios is the Intelligent Servo Corona Treatment Laminating Machine most valuable?

A2: Premium packaging, electronic manuals, or any product that requires strong subsequent die-cutting or printing after lamination. The Intelligent Servo Corona Treatment Laminating Machine is designed for such specialised needs.

Q3: How does the corona unit affect the surface characteristics of the finished product on the Intelligent Servo Corona Treatment Laminating Machine?

A3: It mildly oxidises the surface, reducing static and making the material more receptive to adhesives and inks – without visible change to appearance. This treatment is an option on the Intelligent Servo Corona Treatment Laminating Machine.

Q4: Is the corona unit easy to look after? What should operators keep an eye on?

A4: Routine maintenance involves checking the electrode and clearing off any dust buildup. Electrodes do wear down over time, so periodic inspection and replacement are recommended as part of regular upkeep.
