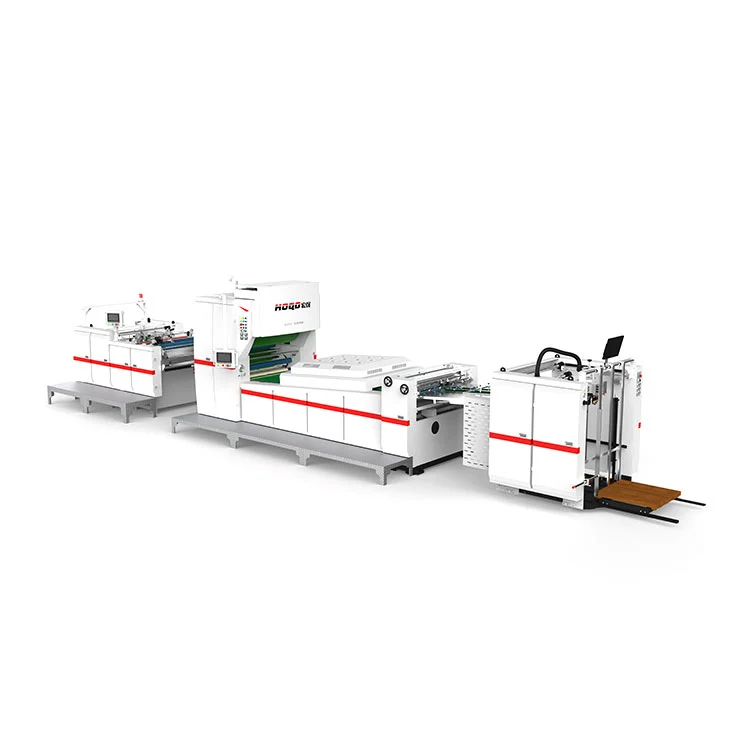

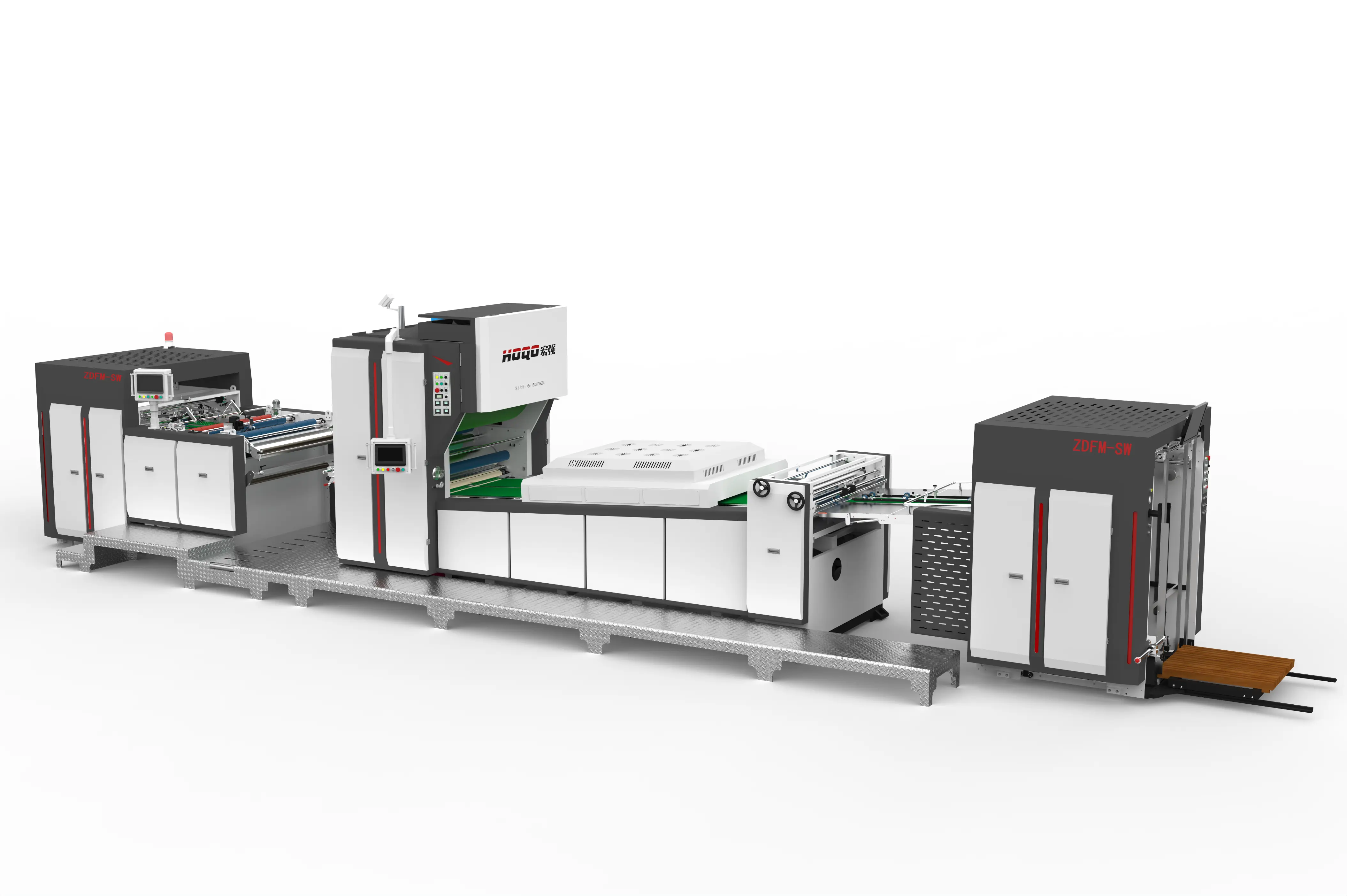

Intelligent Servo Window Laminating Machine

Looking for a solution to efficiently and accurately produce windowed boxes? As a leading laminating machine manufacturer in China, Hongqiang factory brings you a revolutionary Intelligent Servo Window Laminating Machine (Model ZDFM-BW). We are not only your equipment supplier, but also your production partner. This machine can complete high-speed laminating and precise window opening in one stop, specially designed for high-quality carton orders with frequent order changes. Through "one-click order change" technology, complex processes become simple and efficient, directly improving your product grade and production competitiveness.

What is Intelligent Servo Window Laminating Machine?

Our Intelligent Servo Window Laminating Machine is a finishing center designed for high-end carton packaging.

What can it do?

First, our Intelligent Servo Window Laminating Machine can cover BOPP and other light films or matte films on cardboard surfaces at high speed and smoothly, playing a protective and beautification role;

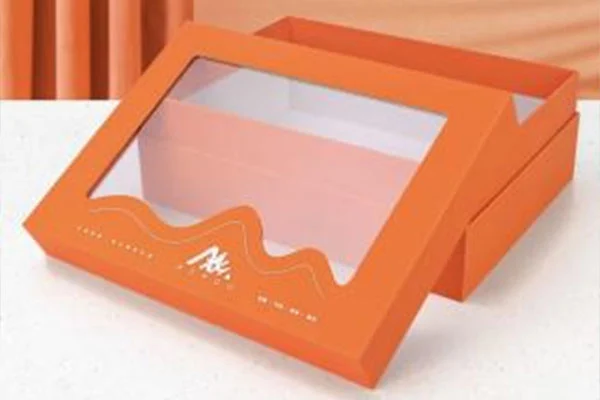

Second, through the optional window unit, glue pre-coat the paper surface, then laminate it with the film to achieve accurately "dig" a transparent window, so that the goods in the box can be seen at a glance. Traditionally need to be carried out separately, such as laminating, die-cutting window and other multi-channel processes, now one time can be completed, the effect is more unified, efficiency has doubled.

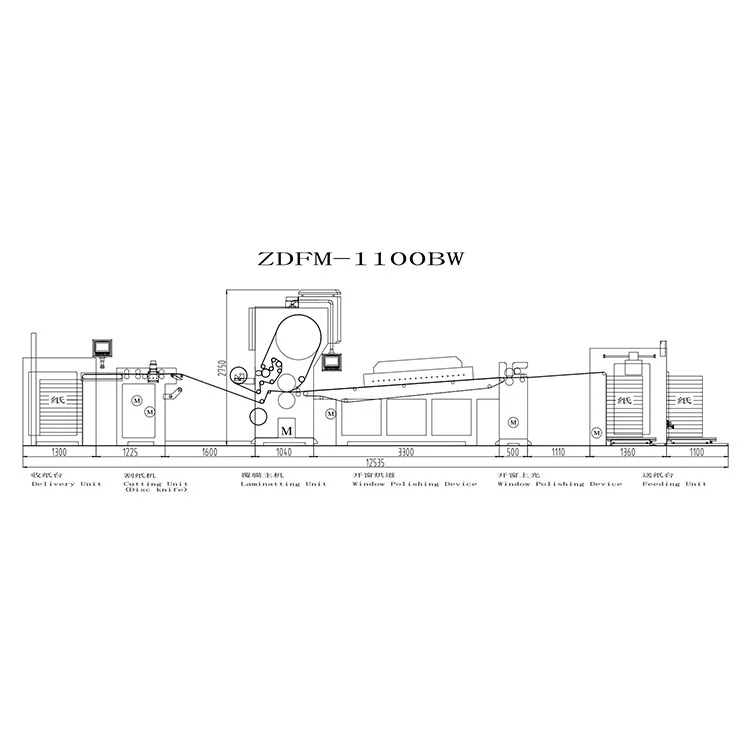

Product Parameter (Specification)

Product Feature

1. One-click order exchange

Input the size and window parameters of the new drawing through the touch screen, and 13 groups of servo motors will work together within 1 minute to adjust all the paper feeding, coating, positioning and receiving.

2. Stability analysis of structures

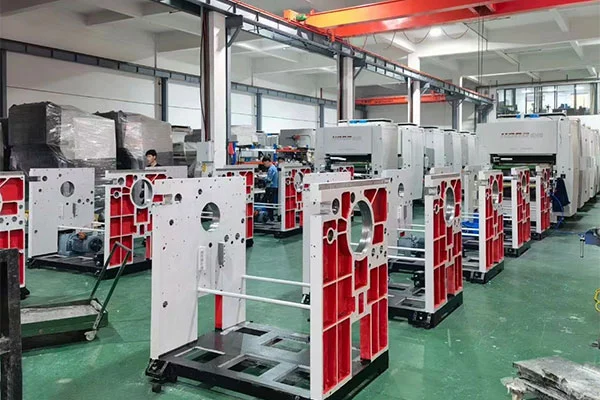

Our Intelligent Servo Window Laminating Machine is rock-solid, built for high-speed, stable production. We insist on using high-rigidity cast iron for the core rack, which does not shake at the sprint speed of 20-100 m/min to ensure that the edges of each window are smooth and neat. This set of steel body, we promise to design life more than 20 years, is your next ten years of production and quality of the most reliable guarantee.

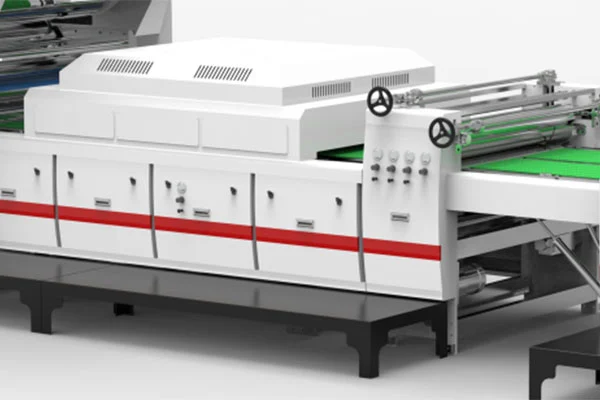

3. Equipped with optional windowing device (Model-W)

High-precision mechanical and control system is adopted to ensure that the window position error is extremely small and the edge is clean without glues. Whether it is a regular square window or a special shaped window, it can be stably realized. Combined with the non-stop paper delivery system, it truly realizes uninterrupted assembly line operation from film winding to finished product stacking, and maximizes equipment utilization.

Production Advantages

Intelligent window laminating machine, as a professional device for plastic film laminating on the paper surfaces, it is outstanding advantages lie in:

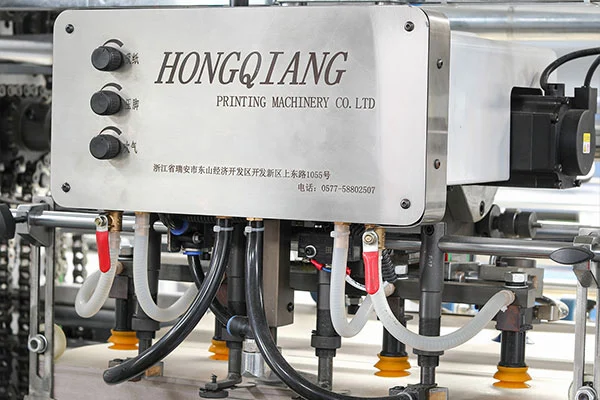

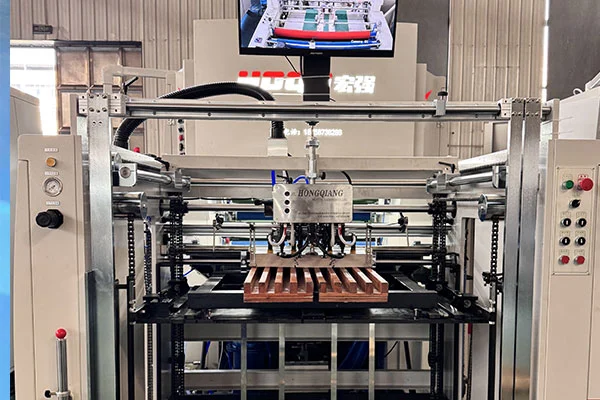

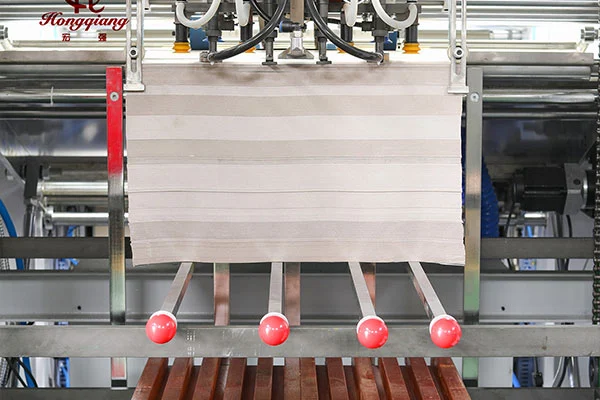

1、High speed feeder system, four suction and two feed stable and fast paper feeding. The maximum speed can reach 12,000 sheets/hour.

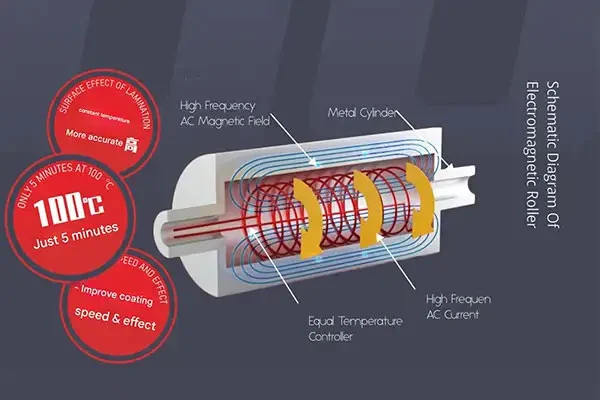

2.Electromagnetic heated Lamination System (3-Zone Segmented Electromagnetic Heating Roller)

Instant Warm-Up (Reaches 100°C in 5 minutes )

High Constant Temperature Precision (Maintains glue uniformity to improve surface effect of laminating even at high speeds.)

Energy Conservation (Activates the second zone for small formats≤720mm, slashing energy use by 33%.)

Longer Lifespan（Targeted heating reduces rubber roller wear, cutting maintenance costs.）
