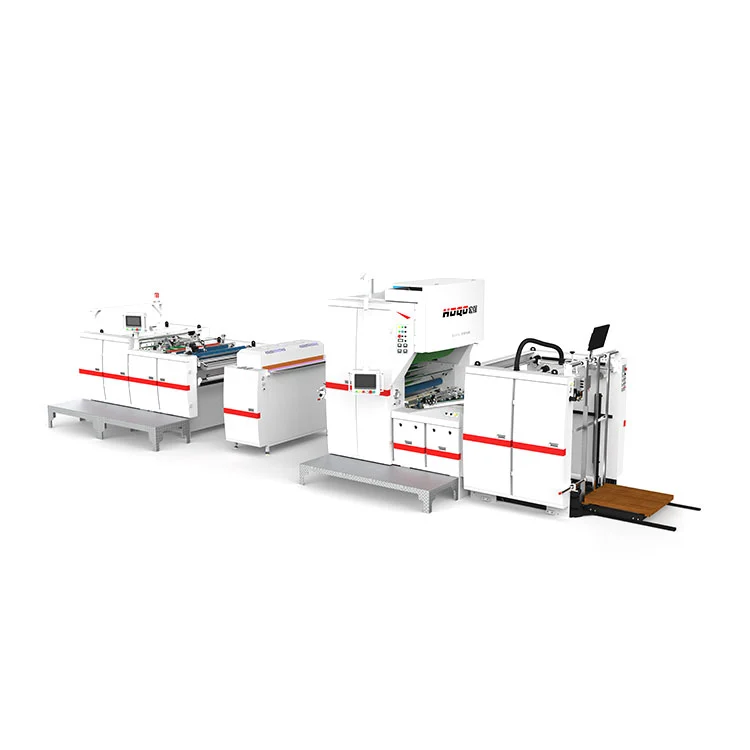

Intelligent Servo UV Curing Laminating Machine

The system is driven by a 13‑axis full servo arrangement, which allows for job changeovers in roughly one minute through a simple one‑button setup. The integrated UV curing unit is designed to add an extra layer of surface durability and a smooth, glossy finish to printed pieces, making it suitable for projects that benefit from enhanced visual and protective qualities.

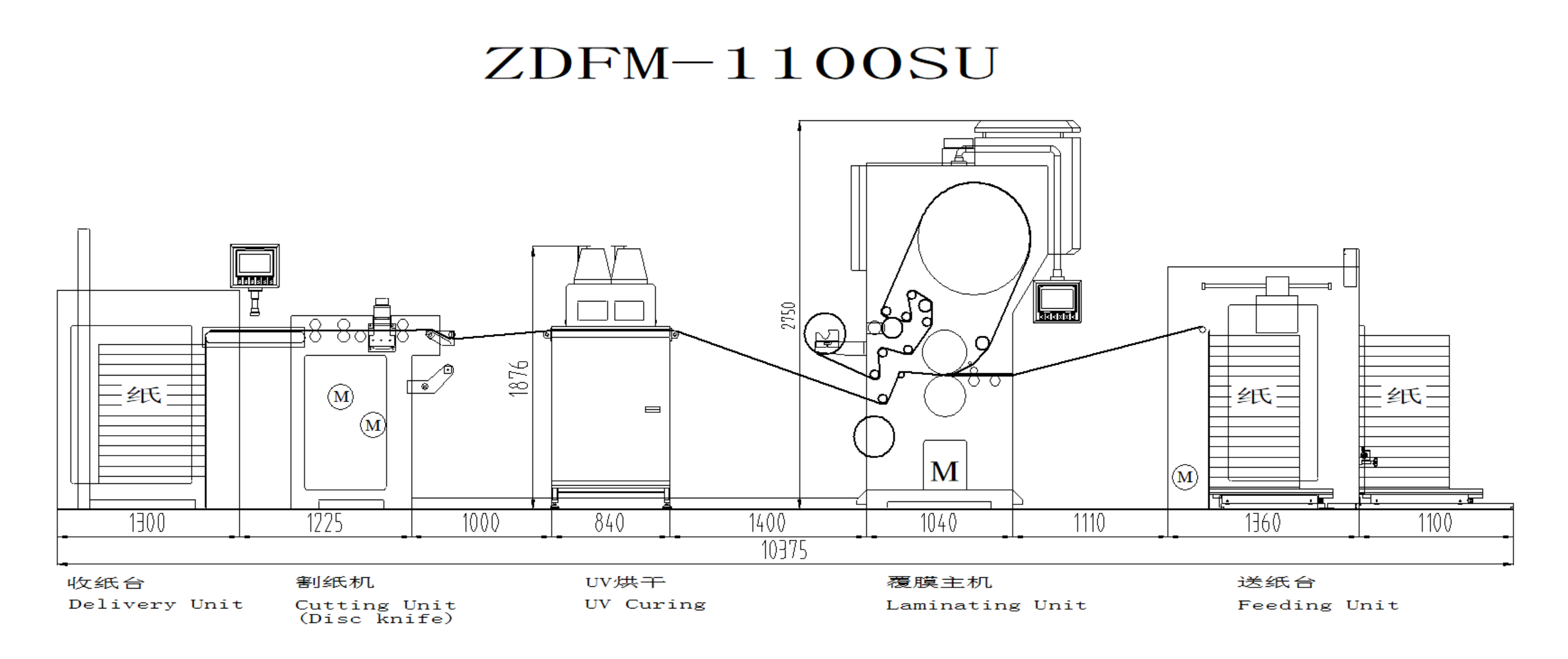

Product Parameter (Specification)

Function and Features:

1. National Standard Compliance

Extensive mechanical design with safety protocols and components certified to China's High-Tech Industrial Standards.

2. Unshakable Stability

Cast iron mainframe offers stable, low-vibration operation even under heavy-duty cycles, with a projected lifespan of over 20 years.

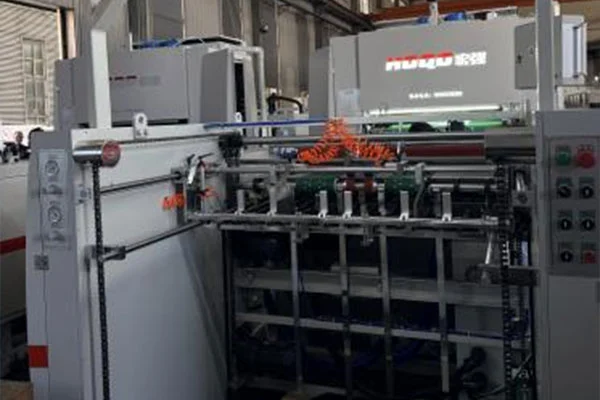

3. Precision Paper Feeding

Servo-controlled feeder system enables smooth paper transport with automatic jam reduction and adjustment.

4. Smart Alignment Technology

Servo-driven alignment maintains positioning within ±1.5 mm for reliable edge matching.

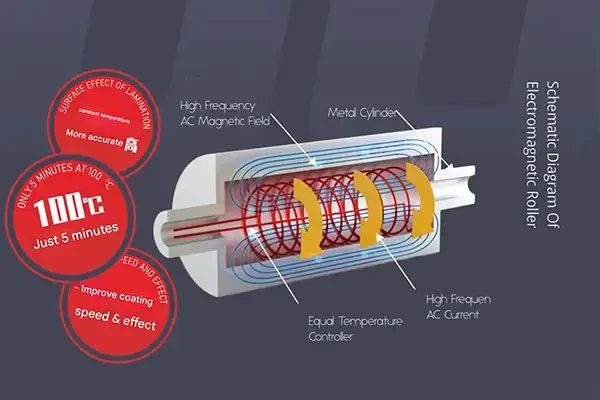

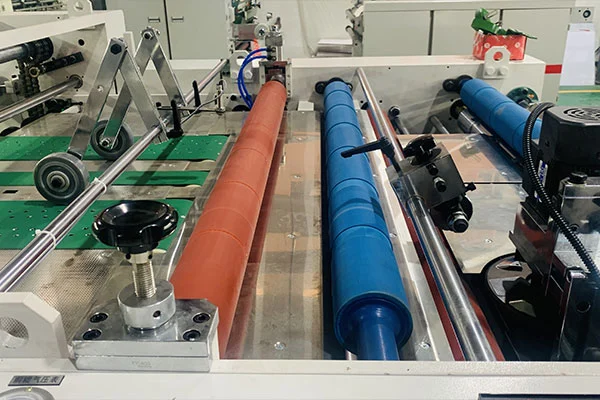

5. Breakthrough Heating System (3-Zone Segmented Electromagnetic Heating Roller)

• Rapid Warm-Up: reaches 100°C in about 5 minutes – noticeably faster than conventional rollers.

• Precise temperature regulation: maintains glue uniformity to improve surface effect even at high speeds.

• Energy Conservation: activates the second zone for small formats ≤720 mm, using around 33% less energy.

• Longer Lifespan: targeted heating helps reduce rubber roller wear and upkeep costs.

6. Intelligent Operation Modes

ZDFM-A: One-touch automation covering feeding, gluing, laminating, pressure pumping & relieving, cutting, and stacking.

ZDFM-S: Intelligent calibration aid – by inputting sheet sizes via the HMI, the 14 servo units auto-adjust in about 1 minute.

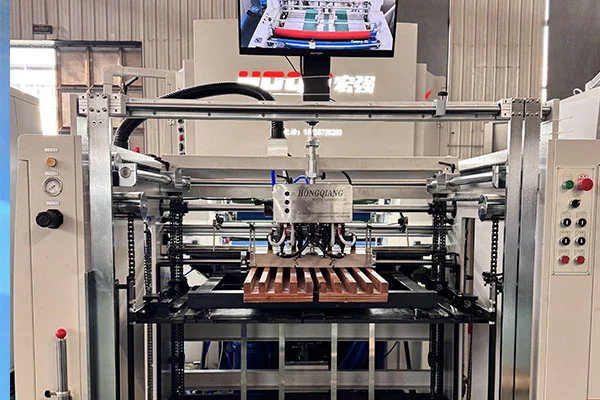

7. Zero-Downtime Productivity

Continuous plate-changing system reduces downtime and can increase output appreciably.

8. Real-Time Process Control

Built-in rear-view monitoring with IoT connectivity for remote diagnostics at any time.

9. Core components from world leaders

Electrical systems: Schneider Electric (FR), Omron (JP).

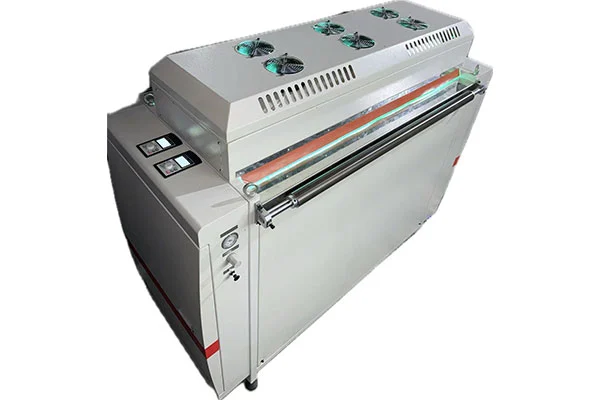

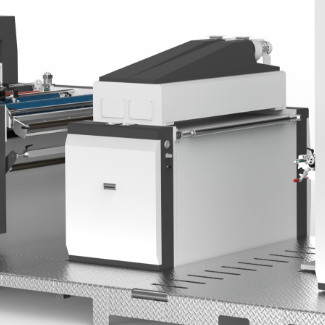

Ultraviolet Curing Device UV(Optional)

1.About Ultraviolet Curing Device, the product is cured at high temperature by ultraviolet irradiation after laminating, effectively  improving product effect of peel resistance. It is suitable for thermal film laminating high-end dark full-page printing paper.

2.Equipped with 2 sets of UV lamps and 2 independent cooling fans makes the product surface cured more evenly and efficiently.

The dedicated cooling fans actively dissipate heat, ‌extending the service life of UV lamp tubes and associated electrical components‌,  ensuring ‌long-term stable operation‌ of the equipment.

FAQ

Q1: What added value does the UV curing module bring to the Intelligent Servo UV Curing Laminating Machine?

A1: It applies ultraviolet light after lamination to increase product effect of peel resistance – especially useful for dark full-coverage prints. This optional module makes the Intelligent Servo UV Curing Laminating Machine suitable for premium packaging.

Q2: Which applications are best suited for the Intelligent Servo UV Curing Laminating Machine?

A2: Luxury boxes, high-end catalogues, and any printed material requiring extra durability and a glossy, scratch-resistant finish. The Intelligent Servo UV Curing Laminating Machine is designed for such quality-driven projects.

Q3: How does the UV curing system on the Intelligent Servo UV Curing Laminating Machine maintain consistent performance?

A3: It includes two UV lamps with independent cooling fans to evenly cure the surface and extend lamp life – ensuring stable long-term operation. This is a key engineering aspect of the Intelligent Servo UV Curing Laminating Machine.

Q4 : Does adding UV curing slow down production speed?

A4: The UV unit is designed for inline curing and does not reduce the main laminating speed. The machine can still run at 20–100 m/min, though curing effectiveness may vary with film type and ink coverage.

Q5 : Which types of printed jobs benefit most from UV curing?

A5: Jobs with heavy ink coverage, dark solids, or high-gloss requirements typically achieve better adhesion with UV treatment. For standard light-coverage work, the benefits may be less noticeable.
