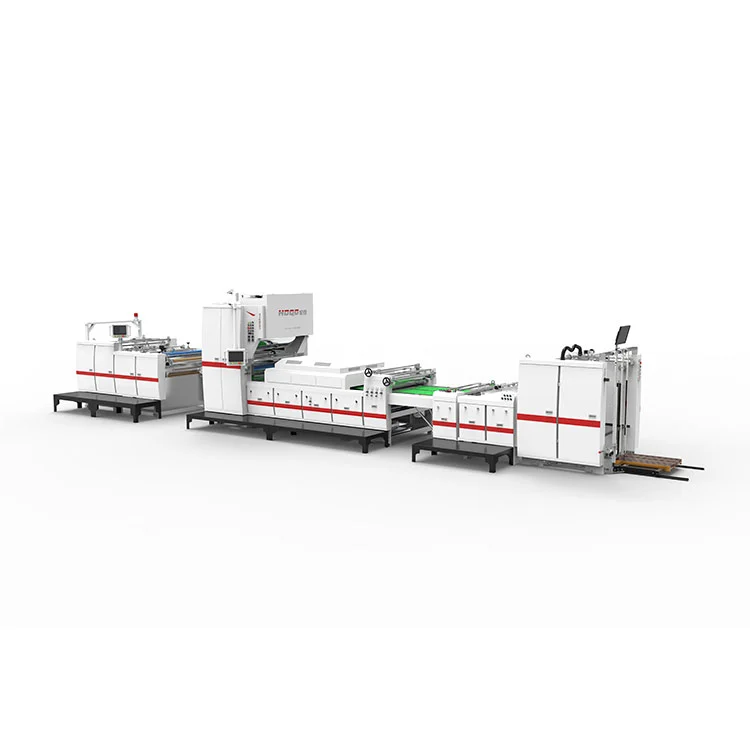

Automatic Corona Treatment Laminating Machine

In high-speed laminating, static dust adsorption and weak glue adhesion often cause defects and processing failures. As a leading China manufacturer, Hongqiang’s durable Automatic Corona Treatment Laminating Machine integrates a high-efficiency corona device, using high-voltage discharge to eliminate static and enhance ink/glue adhesion, ensuring reliable quality for subsequent printing, coating, and laminating processes.

Send Inquiry

Product Description

In high-speed laminating operations, surface static charges and insufficient adhesive strength are among the factors that can lead to defects or complicate downstream processing. The ZDFM‑AO model from Hongqiang is an automatic corona treatment laminating machine that incorporates an optional corona treatment unit. This unit applies high-voltage discharge to generate a mild surface oxidation effect, which can help reduce static buildup and improve the receptivity of inks or adhesives on the substrate. The machine retains dual‑servo drive and operates at speeds from 20 to 100 m/min, while its patented electromagnetic heating system reaches operating temperature in about five minutes and is reported to consume roughly 33% less energy relative to some conventional systems. A cast‑iron frame adds to structural stability over extended use. By integrating corona treatment directly into the lamination line, the equipment offers a way to prepare surfaces more consistently for subsequent printing, coating, or laminating processes without requiring separate pre‑treatment steps.

Product Parameter (Specification)

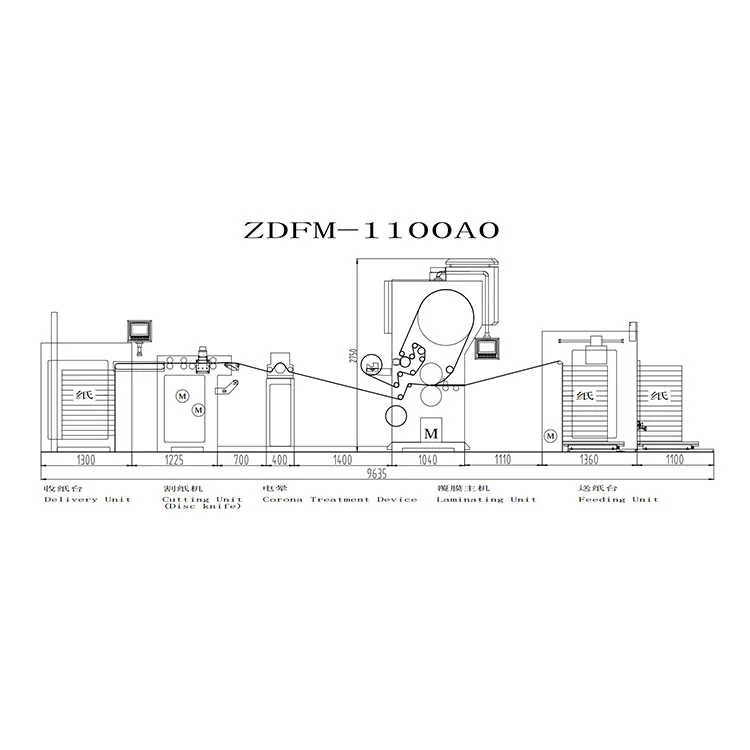

Model Name	ZDFM-1100AO
Max.Paper Sheet Size(W*L)	1080*880mm
Min. Paper Sheet Size(W*L)	350*280mm
Laminating Speed	20-100m/min (servo-controlled)
Paper Thickness	80-550g/㎡
Production Power	26KW
Total Power	73KW
Air supply	1000L/min 0.8Mpa
Power supply	380V 50Hz / 3P4W
Overall Dimensions(LWH)	963522002750mm
Weight	≈8200kg
Overlap Precision	≤+1.5mm
Water Base Film Thickness(common)	0.8/1.0/1.2/1.5
Common Glue Thickness	4-10g/m²
Pre-coat Glue Film Thickness(common)	15-35μm
Non-Stop Feeding Height	1100mm
Collector Paper Height (incl. pallet)	1250mm
Container	40HQ
HS code	8439300000
Material Compatibility	OPP, BOPP films; paper substrates; rigid packaging materials

Function and Features:

1. National Standard Compliance

Reliable mechanical design with safety components certified under China's High-Tech Industrial Standards.

2. Unshakable Stability

Resilient cast-iron mainframe gives stable, vibration-free operation (practically low-vibration) under heavy-duty cycles, with a projected lifespan exceeding 20 years.

3. Precision Paper Feeding

Servo-driven feeder system assures smooth paper transit with integrated anti-jam logic and automatic adjustment.

4. Smart Alignment Technology

Servo-controlled alignment achieves ±1.5 mm positioning for precise edge registration.

5. Energy-Efficient Heating (3-Zone Segmented Electromagnetic Roller)

Speedy Heat-Up: reaches 100°C in about 5 minutes – considerably quicker than conventional models.
Constant Temperature Maintenance: preserves glue uniformity for consistent laminating results at high speeds.
Selective Zone Operation: for widths ≤720 mm, only zone 2 is used, lowering energy consumption by about 33%.
Reduced Roller Deterioration: focused heating mitigates rubber wear and contributes to lower maintenance frequency.

6. Intelligent Operation Modes

ZDFM-A: Automated one-touch cycle covering feeding, gluing, laminating, pressure pumping & relieving, cutting, and stacking.

ZDFM-S: Assisted parameter entry – input sheet size via HMI, and 14 servos auto-adjust in about 1 minute.

7. Zero-Downtime Productivity

Plate-changing without production interruption minimises idle time and can greatly improve overall efficiency.

8. Real-Time Process Control

Built-in rear camera with IoT connectivity enables remote monitoring at all hours.

9. Core components from world leaders

Electrical systems: Schneider Electric (FR), Omron (JP).

Corona Treatment Device(Optional)

About Corona Treatment Device, by high-voltage electric shocking, product surface activation to creates micro-oxides for better ink/glue grip. Effectively increase the Dain value on the surface of the product.
