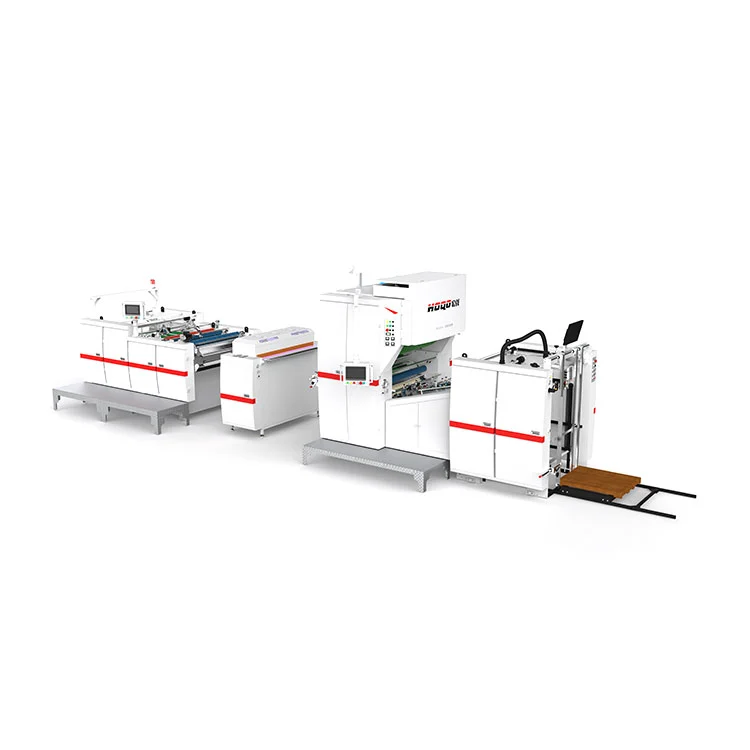

Automatic Vertical UV Curing Laminating Machine

When dealing with full-page dark printing and high-end orders requiring deep embossing, traditional laminating processes often face core challenges such as insufficient gloss after lamination, weak scratch resistance, and easy peeling of the film during subsequent embossing. Hongqiang, as the leader of coating technology in China, launched the high-quality ZDFM-AU Automatic Vertical UV Curing Laminating Machine, which uses the integrated optional UV curing device to instantly cure the adhesive layer after laminated, so that the product obtains ultra-high gloss and excellent peel strength, completely solving the industry pain points of dark printing film blackening and insufficient adhesion of deep embossing.

Send Inquiry

Product Description

For applications involving full-page dark printing or deep embossing, traditional lamination processes sometimes encounter reduced gloss, limited scratch resistance, or adhesion loss during subsequent embossing. The ZDFM‑AU model from Hongqiang is an automatic vertical laminating machine equipped with an optional UV curing unit that rapidly cures the adhesive layer after lamination; this can help achieve higher gloss levels and improved peel strength, which may be particularly useful for dark‑ink prints that tend to appear dull or for deeply embossed areas where adhesion might otherwise be insufficient. The machine retains dual‑servo drive and operates within a speed range of 20–100 m/min. Its UV curing process can fully set the adhesive within seconds, potentially shortening waiting time relative to conventional thermal curing methods. In addition, the patented electromagnetic heating system reaches operating temperature in about five minutes and is reported to consume roughly 33% less energy than some alternatives, while a cast‑iron frame contributes to stable operation. With these combined features, the equipment provides a way to address quality, throughput, and energy considerations in high‑end laminating work without relying on separate offline steps.

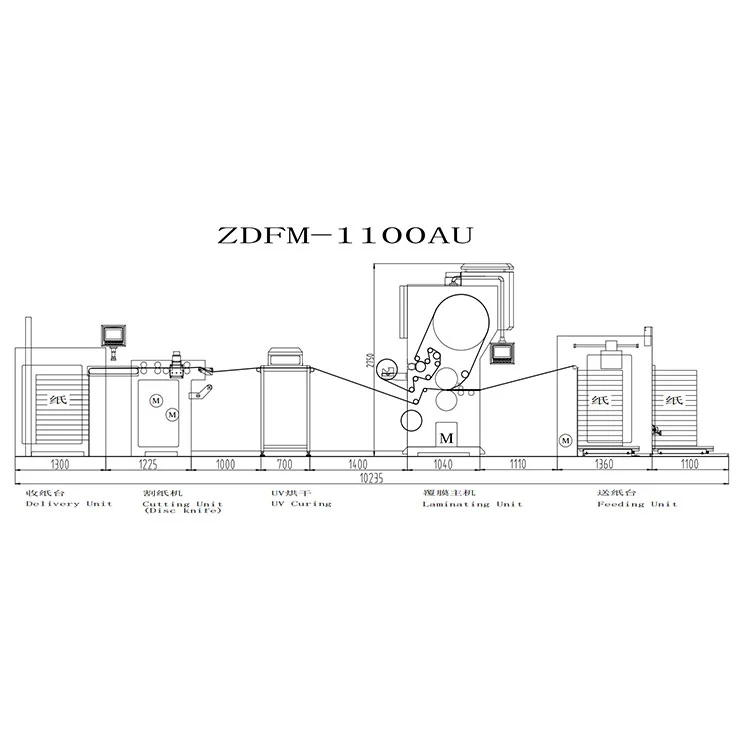

Product Parameter (Specification)

Model Name	ZDFM-1100AU
Max.Paper Sheet Size(W*L)	1080*880mm
Min. Paper Sheet Size(W*L)	350*280mm
Laminating Speed	20-100m/min (servo-controlled)
Paper Thickness	80-550g/㎡
Production Power	39KW
Total Power	86KW
Air supply	1000L/min 0.8Mpa
Power supply	380V 50Hz / 3P4W
Overall Dimensions(LWH)	1023522002750mm
Weight	≈8100kg
Overlap Precision	≤+1.5mm
Water Base Film Thickness(common)	0.8/1.0/1.2/1.5
Common Glue Thickness	4-10g/m²
Pre-coat Glue Film Thickness(common)	15-35μm
Non-Stop Feeding Height	1100mm
Collector Paper Height (incl. pallet)	1250mm
Container	40HQ
HS code	8439300000
Material Compatibility	OPP, BOPP films; paper substrates; rigid packaging materials

Function and Features:

1. National Standard Compliance

Dependable mechanical design with safety systems certified to China's High-Tech Industrial Standards.

2. Unshakable Stability

Massive cast-iron construction assures stable, low-amplitude vibration performance under heavy-duty cycles, with a service life of over 20 years.

3. Precision Paper Feeding

Servo-controlled feeder ensures smooth document transport with automatic jam avoidance and adjustment.

4. Smart Alignment Technology

Servo-registered alignment maintains ±1.5 mm precision for clean edge joining.

5. Advanced Roller Heating (3-Zone Segmented Electromagnetic)

Rapid Heat Build-Up: reaches 100°C in about 5 minutes – significantly faster than conventional alternatives.
Temperature Uniformity: sustains even glue coating to improve surface quality at elevated speeds.
Energy-Efficient Zone Activation: for widths ≤720 mm, only the second zone fires, saving nearly 33% power.
Longer Roller Service Life: directed heat reduces rubber wear and helps control replacement costs.

6. Intelligent Operation Modes

ZDFM-A: One-press automation covering feeding, gluing, laminating, pressure pumping & relieving, cutting, and stacking.

ZDFM-S: Assisted calibration – enter sheet size via HMI, and the 14 servo units auto-position in about 1 minute.

7. Zero-Downtime Productivity

The non-stop plate-changing system minimises production halts and can substantially raise output.

8. Real-Time Process Control

Integrated rear-view monitor with IoT connectivity enables remote diagnostics whenever needed.

9. Core components from world leaders

Electrical systems: Schneider Electric (FR), Omron (JP).

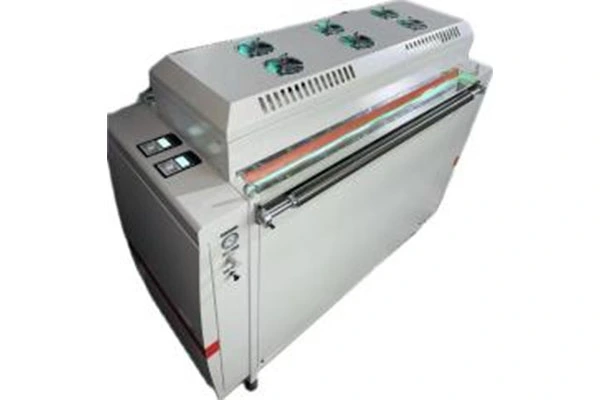

Ultraviolet Curing Device UV(Optional)

1.About Ultraviolet Curing Device, the product is cured at high temperature by ultraviolet irradiation after laminating, effectively improving product effect of peel resistance. It is suitable for thermal film laminating high-end dark full-page printing paper.
2.Equipped with 2 sets of UV lamps and 2 independent cooling fans makes the product surface cured more evenly and efficiently.The dedicated cooling fans actively dissipate heat, ‌extending the service life of UV lamp tubes and associated electrical components‌,ensuring ‌long-term stable operation‌ of the equipment.
